| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
220 pcs
|
220 pcs | On Request | 1 | On Request | On Request | 1937+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

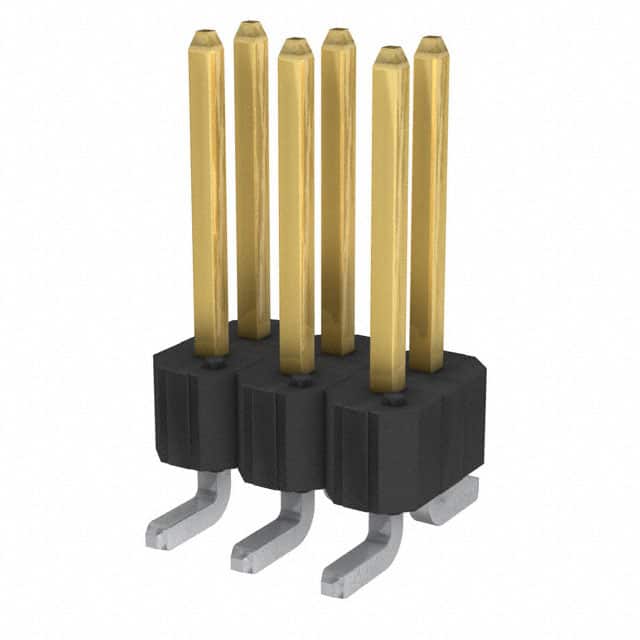

The Amphenol ICC 54202-G3003LF is a 6-position, 2-row unshrouded header designed for board-to-board connections. It features a 2.54mm (0.100") pitch and row spacing, making it suitable for standard prototyping and production applications.
The header uses square male pins with tin-plated phosphor bronze contacts, providing reliable electrical performance. It is rated for 3A current and operates over a temperature range of -65°C to 130°C. The black insulator is made of UL94 V-0 rated material for flame resistance.
This surface mount component uses solder termination and features a push-pull fastening type. The unshrouded design allows for easy mating with standard female connectors. With an insulation height of 2.54mm and a contact length of 8.08mm, it offers a compact profile suitable for space-constrained PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.62 | $0.62 |
| 10+ | $0.52 | $0.52 |
| 25+ | $0.51 | $0.51 |
| 100+ | $0.43 | $0.43 |
| 250+ | $0.40 | $0.40 |
| 1,000+ | $0.36 | $0.36 |
| 2,500+ | $0.33 | $0.33 |
| 4,800+ | $0.32 | $0.32 |
| 9,600+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 6 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
The current rating is 3A.
This is a surface mount header with solder termination.
The operating temperature range is -65°C to 130°C.
Contacts are phosphor bronze with a tin finish of 30.0µin (0.76µm).
