| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

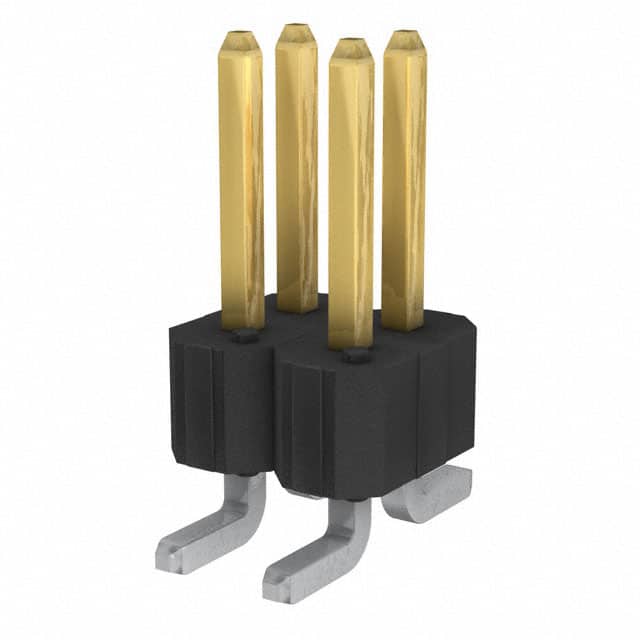

The Amphenol ICC 54202-G0802ALF is a 4-position, 2-row unshrouded male pin header designed for board-to-board applications. The connector uses square phosphor bronze contacts with a tin finish (0.76µm) and a mating contact length of 5.84mm. It features a push-pull fastening type and a black insulator molded from UL94 V-0 rated material.
This surface mount header is supplied with Pick and Place packaging, making it suitable for automated assembly processes. Its 2.54mm pitch and row spacing are standard for general-purpose interconnection in prototype and production circuits.
Operating temperature ranges from -65°C to 130°C, supporting use in a wide variety of environments. The part is RoHS3 compliant (low confidence) and has an MSL of Level 1 for unlimited floor life.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.76 | $0.76 |
| 10+ | $0.65 | $0.65 |
| 100+ | $0.55 | $0.55 |
| 300+ | $0.51 | $0.51 |
| 600+ | $0.49 | $0.49 |
| 900+ | $0.47 | $0.47 |
| 1,500+ | $0.46 | $0.46 |
| 2,100+ | $0.45 | $0.45 |
| 3,000+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions arranged in 2 rows.
The pitch is 2.54mm (0.100"), with the same row spacing.
The nominal current rating is 3A.
It is a surface mount (SMD) component with solder termination.
The contacts are phosphor bronze with a tin finish (0.76µm thickness).
The operating temperature range is -65°C to 130°C.
It is an unshrouded header with a push-pull fastening mechanism.
