| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,200 pcs
|
2200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Body Plating Material | |
| Center Contact Material | |
| Center Contact Plating Material | |
| Center Contact Underplating Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Material | |
| Fastening Type | |
| Frequency | |
| Grade | |
| Height Above PC Board | |
| Housing Color | |
| Impedance | |
| Mated Outer Diameter | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Operating Frequency | |
| Operating Temperature Range | |
| PCB Mount Orientation | |
| Packaging Method | |
| Panel Attachment Style | |
| Shield Termination | |
| Termination Method | |
| Termination Post Length |

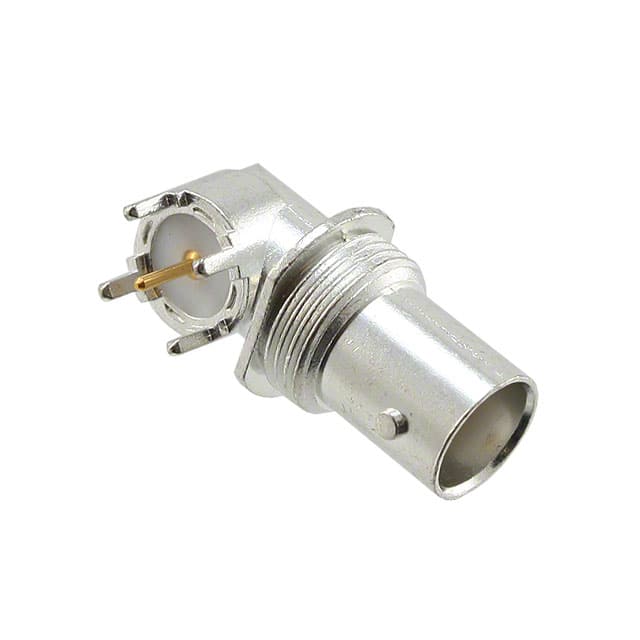

The TE Connectivity 5415025-2 is a BNC RF connector configured as a jack with a female socket. It features a 50 Ohm impedance and supports operating frequencies up to 4 GHz, making it suitable for standard RF interconnect applications.
The connector is designed for cable-to-board connections with a right angle PCB mount orientation. It offers both panel mount (bulkhead, front side nut) and through hole solder termination. The body is made of zinc with tin plating, while the center contact is phosphor bronze with gold plating over a nickel underplating.
Packaged in a tray, this commercial-grade connector has an operating temperature range of -55 to 85 °C. Its bayonet locking mechanism ensures secure mating, and the dielectric material is PTFE.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.56 | $13.56 |
| 10+ | $11.52 | $11.52 |
| 25+ | $10.80 | $10.80 |
| 50+ | $10.28 | $10.28 |
| 100+ | $9.79 | $9.79 |
| 250+ | $9.18 | $9.18 |
| 500+ | $8.74 | $8.74 |
| 1,000+ | $8.33 | $8.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohms.
The maximum operating frequency is 4 GHz.
It supports panel mount (bulkhead, front side nut) and through hole right angle PCB mount.
The operating temperature range is -55 to 85 °C.
The body is made of zinc with tin plating.
