| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
421 pcs
|
421 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

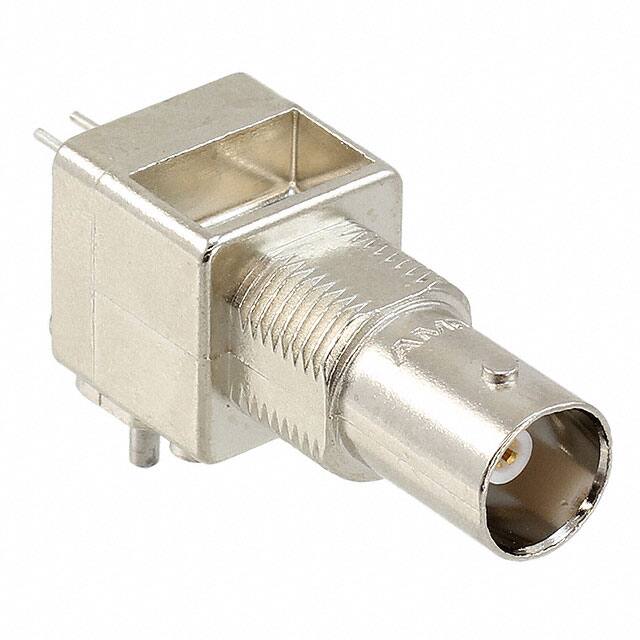

The TE Connectivity 5414409-1 is a BNC coaxial connector assembly featuring a jack, female socket interface. It is designed for 75 Ohm impedance and supports frequencies up to 2 GHz, making it suitable for standard RF and video signal applications.
This connector uses a bayonet lock fastening type for secure and quick connections. It is configured for panel mount with a bulkhead front side nut mounting feature, and also supports through hole, right angle PCB mounting. Both the contact and shield terminations are solder type, ensuring reliable electrical connections.
The center contact is made of phosphor bronze, and the housing has a silver color. This single port connector is built for durability and consistent performance in various electronic systems.
| Qty | Low | High |
|---|---|---|
| 525+ | $10.53 | $10.53 |
| 1,050+ | $9.99 | $9.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5414409-1 has a 75 Ohm impedance.
The maximum frequency rating is 2 GHz.
It supports panel mount, through hole, and right angle mounting.
Both the contact and shield terminations are solder type.
It uses a bayonet lock fastening type.
