| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
|
89 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| China RoHS | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| ELV | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

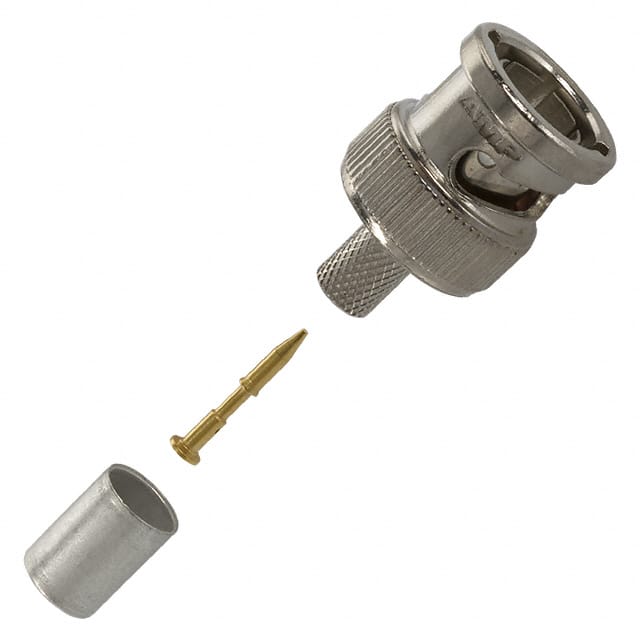

The TE Connectivity 5413589-2 is a 75 Ohm BNC plug connector designed for RG-59, 59A, and 59B cables. It features a male pin center contact made of brass and a bayonet lock fastening mechanism for secure connections. The connector supports frequencies up to 2 GHz and uses crimp termination for both the center contact and shield, ensuring reliable electrical performance. It is intended for free hanging (in-line) mounting and has a silver housing color.
This connector is part of TE Connectivity's coaxial connector line and is rated for 75 Ohm systems. It meets various environmental compliance standards including EU RoHS with exemptions, EU ELV, and China RoHS. According to the manufacturer's datasheet, this part is designated as obsolete. It is cross-referenced by DigiKey under part numbers A32289-ND and 2266-5413589-2-ND.
Free Hanging (In-Line).
75 Ohm.
2 GHz.
RG-59, 59A, 59B.
Crimp for both contact and shield.
Bayonet Lock.
Compliant with Exemptions (6(c) - Pb-Alloy in Copper).
