| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

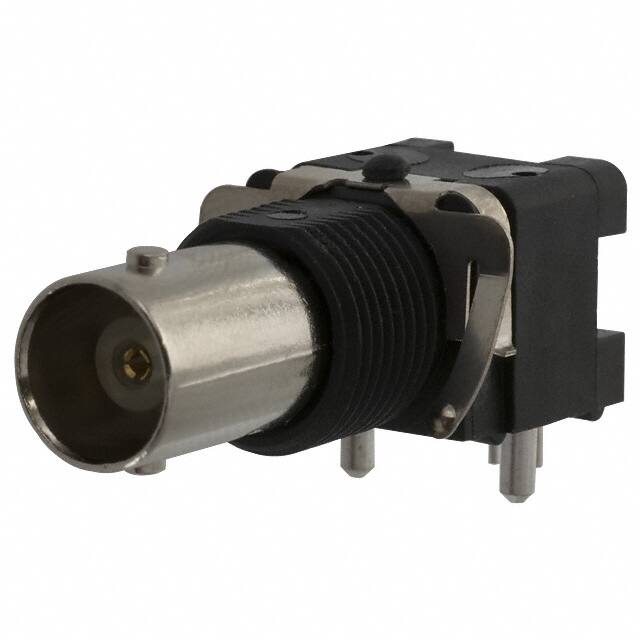

The TE Connectivity 5413515-2 is a BNC jack coaxial connector designed for RF applications. It operates at a frequency of 1 GHz and maintains a 50 Ohm impedance.
This connector features a right angle mounting type suitable for PCB applications, with a bulkhead mounting feature and front side nut. The fastening mechanism is a bayonet lock, ensuring a secure connection. The center contact is made of phosphor bronze, and termination is achieved through solder for both the contact and shield.
Additional features include board guide, filter, and isolated functionality. The housing is presented in black and silver colors. This component is classified as a Coaxial Connector (RF) Assembly.
50 Ohm.
1 GHz.
Panel mount, through hole, right angle orientation with bulkhead front side nut.
BNC jack, female socket.
Solder termination for both center contact and shield.
Bayonet lock.
Board guide, filter, and isolation.
