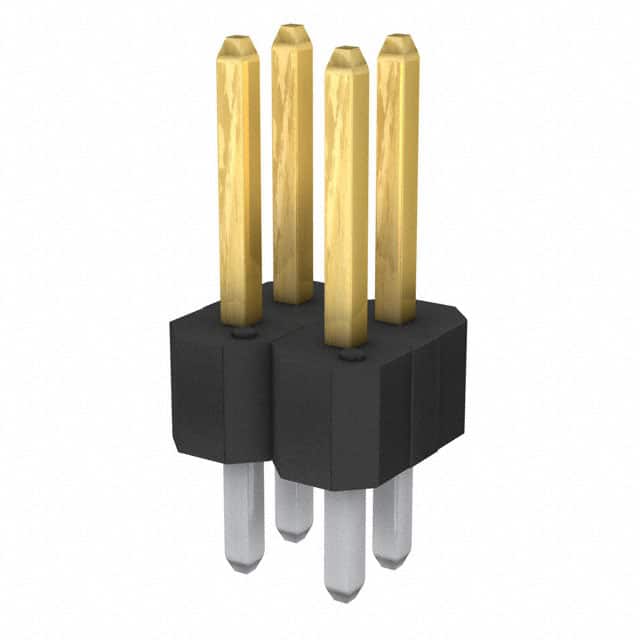

54102-S08-02 Amphenol ICC 54102-S08-02 is a 4-position, 2-row unshrouded header with a 2.54mm pitch, designed for through-hole mounting and solder termination.
Mfr Part #:

54102-S08-02

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC 54102-S08-02 is a 4-position, 2-row unshrouded header with a 2.54mm pitch, designed for through-hole mounting and solder termination.
✓ Total Stock: 4,804 pcs
$ Price Range: $0.23

54102-S08-02 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
4,804 pcs
On Request
4804 pcs On Request 1 On Request On Request NDC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

54102-S08-02 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

54102-S08-02 Description

Short technical summary and product information.

The Amphenol ICC 54102-S08-02 is a 4-position unshrouded header connector designed for board-to-board or cable applications. It features a 2.54mm pitch and 2 rows of male pin contacts, making it suitable for standard spacing requirements. The connector uses a through-hole mounting style with solder termination for secure attachment to a printed circuit board.



The header has a push-pull fastening type and is unshrouded, providing easy access for mating. The contacts are made of phosphor bronze with a gold or Gold GXT finish, offering reliable conductivity and corrosion resistance. The insulation is black with a UL94 V-0 flammability rating, ensuring safety in various environments.



This connector is rated for 3A per contact and has an overall contact length of 11.43mm. It is suitable for use in a variety of electronic assemblies where a compact, reliable header connection is needed.

54102-S08-02 Quick Information

Product Type: Header
Series: BergStik
Canonical Name: Amphenol ICC 54102-S08-02 Unshrouded Header, 4 Position, 2.54mm Pitch, Through Hole
Subcategory: Unshrouded Header

54102-S08-02 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

54102-S08-02 Estimated Pricing

Qty Low High
2,000+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

54102-S08-02 Features

  • 4-position unshrouded header with 2.54mm pitch.
  • Through-hole mounting with solder termination.
  • Rated for 3A per contact.
  • Phosphor bronze contacts with gold finish.
  • UL94 V-0 flammability rated black insulator.

54102-S08-02 Applications

  • Suitable for board-to-board connections.
  • Used in cable-to-board interconnect applications.
  • Ideal for standard 2.54mm pitch PCB layouts.

54102-S08-02 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the pitch of the 54102-S08-02 header?

The pitch is 2.54mm (0.100").

How many positions does the 54102-S08-02 have?

It has 4 positions arranged in 2 rows.

What is the current rating of the 54102-S08-02?

The current rating is 3A per contact.

What is the mounting type for this header?

It is a through-hole mount component with solder termination.
