| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,985 pcs
|
1985 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Housing Color | |
| Housing Material | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Method |

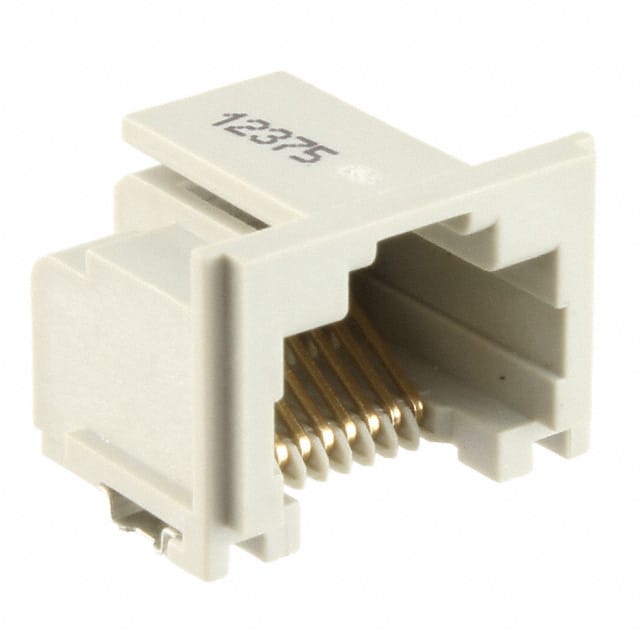

The TE Connectivity 5406721-2 is a single port RJ45 modular jack designed for Ethernet and networking applications. It features 8 positions with 8 contacts (8P8C), a right angle PCB mount orientation, and unshielded construction for basic signal transmission. The connector is rated for Cat 5 performance, supporting frequencies up to 100 MHz. It operates over a temperature range of -40 to 70°C.
Mechanically, the jack offers both board mount and panel mount options with integral panel stops. The housing is made of high temperature thermoplastic in gray color. The contacts are copper alloy with gold plating on the mating area (0.76 µm) and tin plating on the termination area. Termination is via solder, with a tail length of 1.52 mm. The connector includes features such as board lock, panel stops, and solder retention for secure attachment.
The 5406721-2 is packaged in tape and reel format with 200 pieces per reel. It is RoHS compliant and also meets ELV and China RoHS requirements. The moisture sensitivity level is MSL 1 with unlimited floor life. This unshielded jack does not contain LEDs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.11 | $2.11 |
| 10+ | $1.79 | $1.79 |
| 25+ | $1.68 | $1.68 |
| 50+ | $1.60 | $1.60 |
| 100+ | $1.53 | $1.53 |
| 200+ | $1.45 | $1.45 |
| 400+ | $1.38 | $1.38 |
| 600+ | $1.34 | $1.34 |
| 1,000+ | $1.30 | $1.30 |
| 1,400+ | $1.27 | $1.27 |
| 2,000+ | $1.23 | $1.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions (8P8C) with 8 loaded contacts.
The centerline pitch is 1.02 mm.
It supports board mount and panel mount with panel stops.
No, it is unshielded.
The operating temperature range is -40 to 70°C.
It is rated for Cat 5 performance.
No, it does not contain LEDs.
