| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,080 pcs
|
1080 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
783 pcs
|
783 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

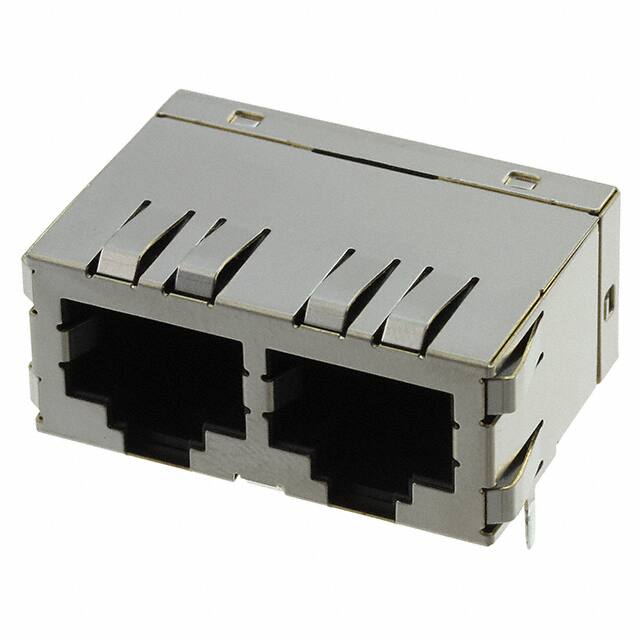

The TE Connectivity 5406566-2 is a modular connector jack designed for Ethernet applications. It features an 8p8c (RJ45) configuration with 2 ports, supporting Cat5 rated performance. The connector is shielded with an EMI finger to reduce electromagnetic interference, ensuring reliable data transmission.
The jack is mounted through hole with a right angle orientation, making it suitable for PCB designs where space is constrained. It has a single row of contacts with gold plating over phosphor bronze, providing excellent conductivity and corrosion resistance. The tab direction is down, and it includes a board guide for accurate alignment during assembly.
This component does not contain an LED indicator. It is compliant with RoHS3 and REACH regulations. The part is part of TE Connectivity's high performance modular jack series, with a manufacturing location change from China Zhuhai to China Huizhou as per PCN-26-267318.
| Qty | Low | High |
|---|---|---|
| 675+ | $10.47 | $10.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8p8c (RJ45, Ethernet)
Through Hole
2 ports
90° Angle (Right)
Yes, shielded with EMI finger
Gold
Cat5
