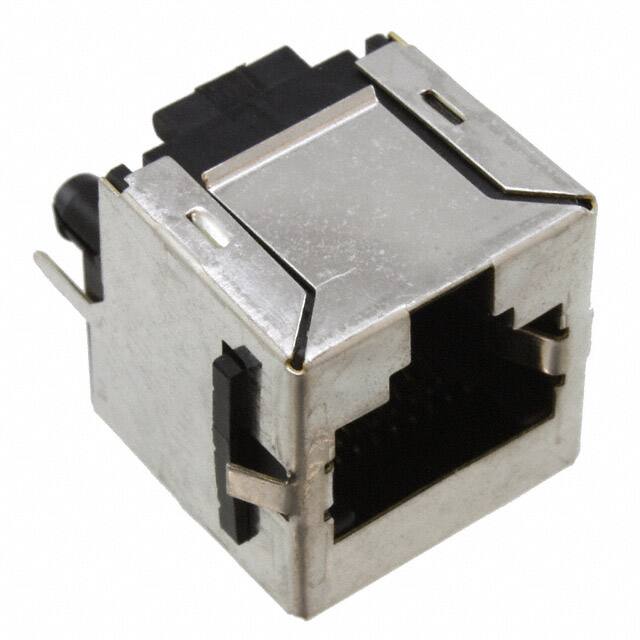

5406436-1 TE Connectivity 5406436-1 is a Cat3 modular jack connector with 1 port, 8P8C contacts, vertical orientation, and through-hole termination. It features shielding with EMI finger, board lock, and panel stops.
Mfr Part #:

5406436-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5406436-1 is a Cat3 modular jack connector with 1 port, 8P8C contacts, vertical orientation, and through-hole termination. It features shielding with EMI finger, board lock, and panel stops.
✓ Total Stock: 2,060 pcs
$ Price Range: $1.96 - $3.41

5406436-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
1,659 pcs
On Request
1659 pcs On Request 1 On Request On Request On Request On Request On Request
HMB Electronics LLC ✓
Non-Authorised Inventory information
401 pcs
On Request
401 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5406436-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

5406436-1 Description

Short technical summary and product information.

The 5406436-1 is a modular jack connector manufactured by TE Connectivity, designed for Ethernet and telecommunications applications. This connector has a single port with 8P8C (RJ45) contact arrangement, providing connectivity for Cat3-rated networks.



The jack is vertically oriented with through-hole mounting and solder termination, making it suitable for PCB integration. The connector features full shielding with an EMI finger for enhanced electromagnetic interference protection. Additional mechanical features include board lock and panel stops for secure mounting.



Contact material is phosphor bronze with a gold finish, ensuring reliable electrical performance over repeated mating cycles. The part does not contain an LED indicator. The tab direction is user selectable, allowing flexibility in cable orientation.

5406436-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: 5406436-1 TE Connectivity RJ45 Modular Jack, 8P8C, Vertical, Through Hole, Shielded
Subcategory: RJ45 Jack

5406436-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5406436-1 Estimated Pricing

Qty Low High
1+ $3.41 $3.41
10+ $2.90 $2.90
25+ $2.72 $2.72
50+ $2.59 $2.59
108+ $2.45 $2.45
324+ $2.27 $2.27
540+ $2.19 $2.19
1,080+ $2.08 $2.08
2,592+ $1.96 $1.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

5406436-1 Features

  • Shielded with EMI finger for EMI protection.
  • Vertical through-hole mounting with solder termination.
  • Cat3 rated RJ45 modular jack connector.
  • Gold-plated phosphor bronze contacts for reliability.
  • Board lock and panel stops for secure installation.

5406436-1 Applications

  • Ethernet network interface and telephony applications.
  • Cat3 compliant wired communication systems.
  • Industrial control panel and equipment connectivity.
  • Telecommunications and data networking hardware.

5406436-1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the connector type of 5406436-1?

It is a modular jack connector (RJ45) with 8P8C contacts.

What is the mounting style of this connector?

The mounting type is through-hole with solder termination, vertical orientation.

Is the 5406436-1 connector shielded?

Yes, it is shielded and includes an EMI finger for electromagnetic interference protection.

Does this connector have an LED?

No, this connector does not contain an LED.

What is the contact material and finish?

The contact material is phosphor bronze with a gold finish.

What is the category rating for this jack?

It is rated Cat3.
