| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,960 pcs
|
2960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
308 pcs
|
308 pcs | On Request | 1 | On Request | On Request | 0742 | On Request | On Request | |
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Material | |
| Features | |
| Flammability Rating | |
| Grounding Options | |
| Height | |
| Housing Material | |
| LED | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of PCB Ground Tabs | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| PCB Thickness Recommended | |
| Performance Category | |
| Preloaded | |
| Ratings | |
| Shield Material | |
| Shield Plating | |
| Shielding | |
| Solder Tail Contact Plating | |
| Tab Direction | |
| Termination |

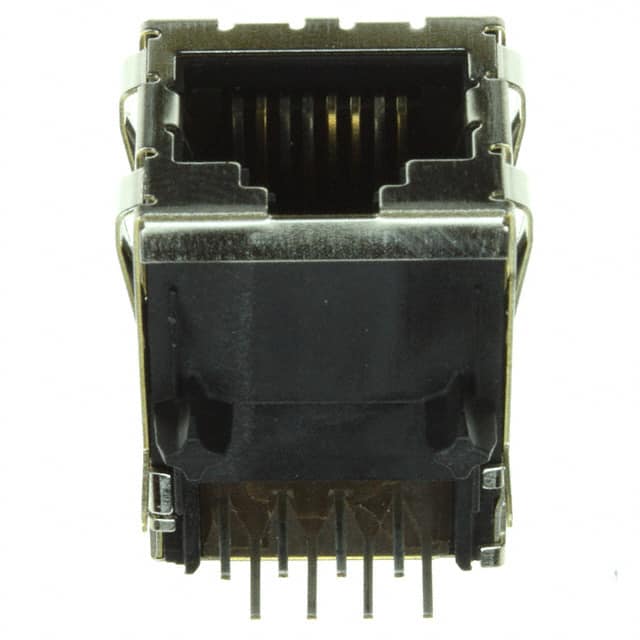

The TE Connectivity 5406299-1 (internal number 1-5406299-1) is a single-port RJ45 modular jack with 8 positions (8P8C) in a 1x1 configuration. It is mounted via through hole technology with a right angle (side entry) orientation, making it suitable for edge-mounted PCB applications where space is limited.
The connector is fully shielded with a copper alloy shield plated with tin, and includes an EMI finger for enhanced electromagnetic interference protection. Grounding options include both panel ground and PCB ground via two PCB ground tabs. The housing is made of high temperature nylon with a UL94 V-0 flammability rating.
Electrical performance meets Cat5e standards. The contact mating area is gold plated (50µin) over phosphor bronze, while solder tails are tin over nickel. This jack does not include an LED. The recommended PCB thickness is 1.57 mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.38 | $6.38 |
| 10+ | $5.42 | $5.42 |
| 25+ | $5.08 | $5.08 |
| 80+ | $4.68 | $4.68 |
| 160+ | $4.46 | $4.46 |
| 320+ | $4.24 | $4.24 |
| 560+ | $4.08 | $4.08 |
| 1,040+ | $3.91 | $3.91 |
| 2,560+ | $3.66 | $3.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is an RJ45 Jack (8P8C) modular connector.
Through hole mounting with right angle orientation.
Yes, it is shielded with an EMI finger. Shield material is copper alloy plated with tin. Grounding options include panel ground and PCB ground via two PCB ground tabs.
Cat5e.
No, it is without LED.
