| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,360 pcs
|
3360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
356 pcs
|
356 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Height | |
| Connector Type | |
| Contact Current Rating (Max) | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Housing Color | |
| Housing Material | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Orientation | |
| PCB Mount Orientation | |
| Performance Category | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Method | |
| UL Flammability Rating |

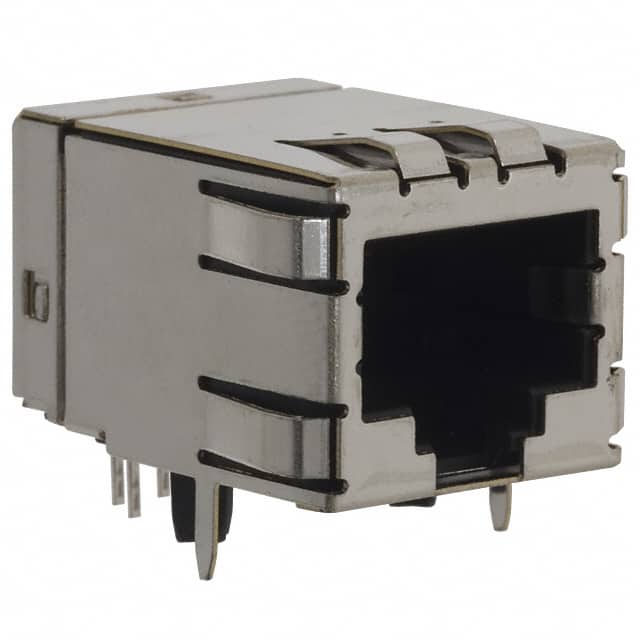

The TE Connectivity 5406296-1 is a single-port RJ45 modular jack designed for Ethernet applications. It features 8 positions (8P8C) with a right-angle PCB mount orientation, making it suitable for edge-mounted or space-constrained designs. The connector is fully shielded with an EMI finger and includes a board guide for reliable alignment during assembly.
Electrical performance is rated for Cat 5e, supporting data rates up to 100 MHz. The contacts are rated for a maximum current of 1.5 A and are made of phosphor bronze with a gold plating on the mating area for corrosion resistance and reliable connectivity. The housing is constructed from high-temperature nylon with a UL 94V-0 flammability rating, ensuring safety in high-temperature environments.
The connector is terminated via through-hole solder and includes two PCB ground tabs for effective grounding. The latch orientation is standard latch-down, and the connector height is 14.48 mm. This part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.76 | $6.76 |
| 10+ | $5.74 | $5.74 |
| 25+ | $5.38 | $5.38 |
| 80+ | $4.96 | $4.96 |
| 160+ | $4.72 | $4.72 |
| 320+ | $4.49 | $4.49 |
| 560+ | $4.32 | $4.32 |
| 1,040+ | $4.14 | $4.14 |
| 2,560+ | $3.88 | $3.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is a Jack (RJ45).
It has 8 positions (8P8C).
Through Hole mounting with solder termination.
The maximum contact current rating is 1.5 A.
-40 to 85 °C.
Cat 5e.
Yes, it is listed as RoHS3 Compliant (unverified).
