5406203-3

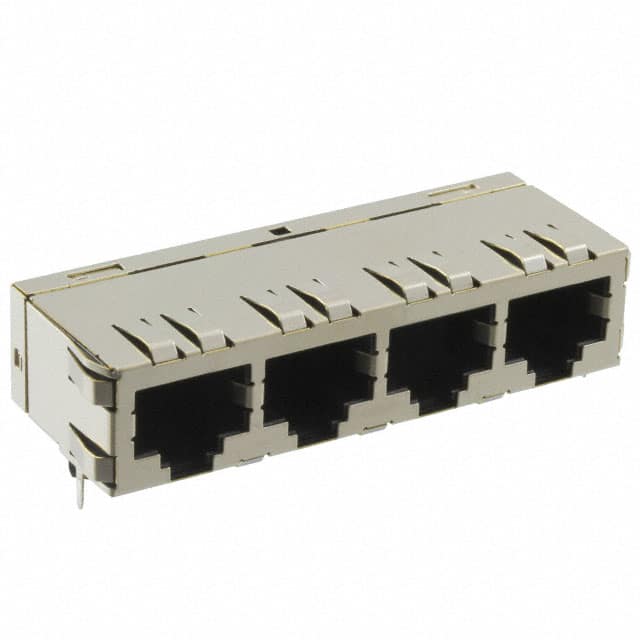

The TE Connectivity 5406203-3 is a modular jack designed for RJ45 Ethernet applications. It features 8 position 8 conductor (8p8c) contacts arranged in a single row, with 4 ports in a compact form factor. The connector is mounted via through hole technology and has a right angle (90°) orientation, making it suitable for edge-mount or low-profile PCB designs. The jack is shielded with an EMI finger to reduce electromagnetic interference, and includes a board guide for alignment during assembly.

The contact material is phosphor bronze with a gold finish, ensuring reliable electrical connections and resistance to corrosion. The connector is rated for Cat5 applications, supporting standard Ethernet performance. The housing does not contain an LED indicator, simplifying the design for applications where status lights are not required.

This modular jack is through hole solder terminated, providing a robust mechanical connection to the PCB. The tab direction is down, which is common for standard RJ45 cable insertion. The component is RoHS compliant and REACH unaffected, though these compliance certifications are unverified. The part is suitable for use in networking equipment, patch panels, and other data communication systems.
