| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,988 pcs
|
8988 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Socket Type | |
| Termination | |
| Termination Style | |
| Type |

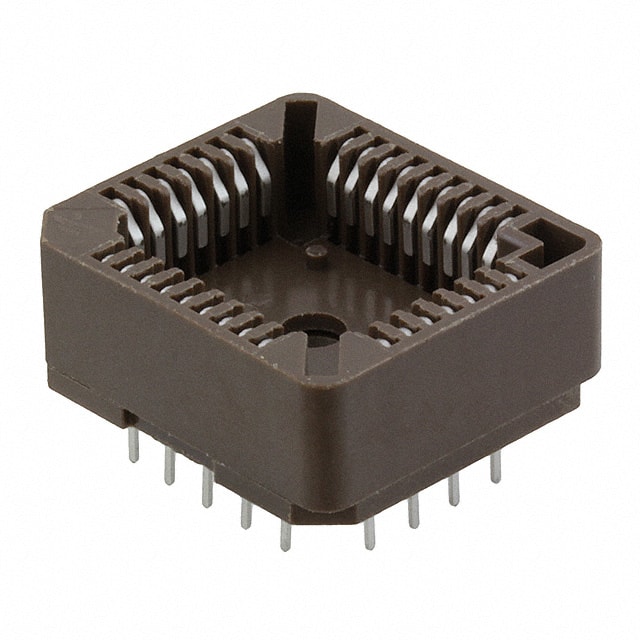

The 54020-32030LF is a 32-position PLCC socket from Amphenol ICC designed for through-hole mounting. It features a 2.54mm (0.100") pitch and tin-plated copper alloy contacts with a thickness of 100.0µin (2.54µm). The housing is made of polyphenylene sulfide (PPS) and the socket has a closed frame design.
This socket is suitable for use with PLCC-packaged ICs in applications requiring reliable solder termination. The operating temperature range is -40°C to 105°C, making it appropriate for a variety of industrial and commercial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.03 | $2.03 |
| 10+ | $1.73 | $1.73 |
| 28+ | $1.60 | $1.60 |
| 56+ | $1.53 | $1.53 |
| 112+ | $1.46 | $1.46 |
| 252+ | $1.37 | $1.37 |
| 504+ | $1.31 | $1.31 |
| 1,008+ | $1.25 | $1.25 |
| 2,520+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 32 positions.
Through hole mounting with solder termination.
-40°C to 105°C.
Tin contact finish with a thickness of 100.0µin (2.54µm).
