| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

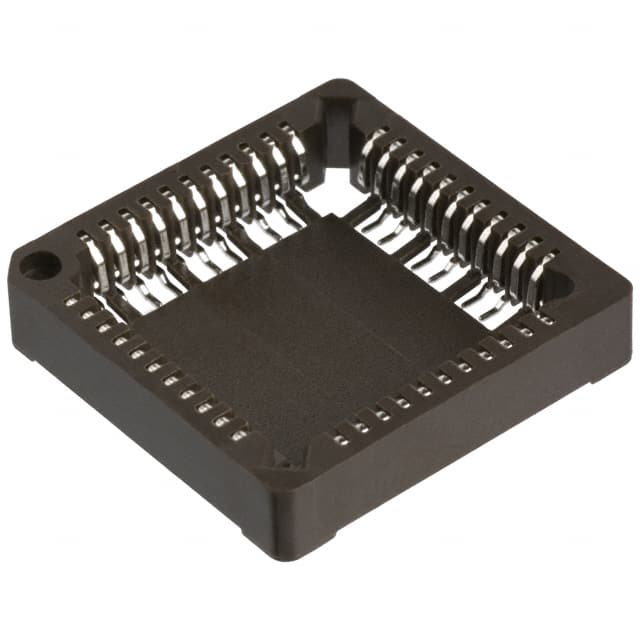

The Mill-Max 540-44-044-17-400000 is a 44-position PLCC (Plastic Leaded Chip Carrier) socket designed for surface mount applications. It features a 1.27mm (0.050") pitch and a closed frame housing made from polyphenylene sulfide (PPS), providing robust mechanical support and reliable insulation.
The socket uses tin-plated copper alloy contacts with a contact finish thickness of 150.0µin (3.81µm), ensuring good solderability and corrosion resistance. It is rated for an operating temperature range of -55°C to 125°C, making it suitable for a wide variety of industrial and commercial environments.
This component is intended for use in programming, testing, or production sockets for PLCC-packaged ICs. The surface mount design allows for automated assembly processes, and the closed frame construction helps protect contacts during handling and reflow.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.69 | $4.69 |
| 22+ | $3.77 | $3.77 |
| 44+ | $3.59 | $3.59 |
| 66+ | $3.48 | $3.48 |
| 110+ | $3.36 | $3.36 |
| 264+ | $3.16 | $3.16 |
| 506+ | $3.02 | $3.02 |
| 1,012+ | $2.87 | $2.87 |
| 2,508+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
44 positions arranged in a 4x11 grid.
1.27mm (0.050").
Surface mount with solder termination.
-55°C to 125°C.
Tin with 150.0µin (3.81µm) thickness.
Polyphenylene Sulfide (PPS).
