| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
490 pcs
|
490 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Captivation | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Resistance | |
| Contact Termination | |
| Corrosion | |
| Coupling Nut Retention | |
| Coupling Torque | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insertion Loss (DC to 8 GHz) | |
| Insulation Resistance | |
| Mating Cycles | |
| Moisture Resistance | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| RF Leakage (up to 1 GHz) | |
| Return Loss (Minimum @ DC to 2 GHz) | |
| Sales Unit | |
| Shield Termination | |
| Shock | |
| Thermal Shock | |
| Vibration | |
| Weight | |
| Working Voltage | |
| coupling_torque (Maximum) | |
| power_rating (@ 1 GHz, 20 °C, sea level, VSWR 1.0) | |
| power_rating (@ 2 GHz, 20 °C, sea level, VSWR 1.0) | |
| return_loss (Minimum @ 2 to 4 GHz) | |
| return_loss (Minimum @ 4 to 8 GHz) |

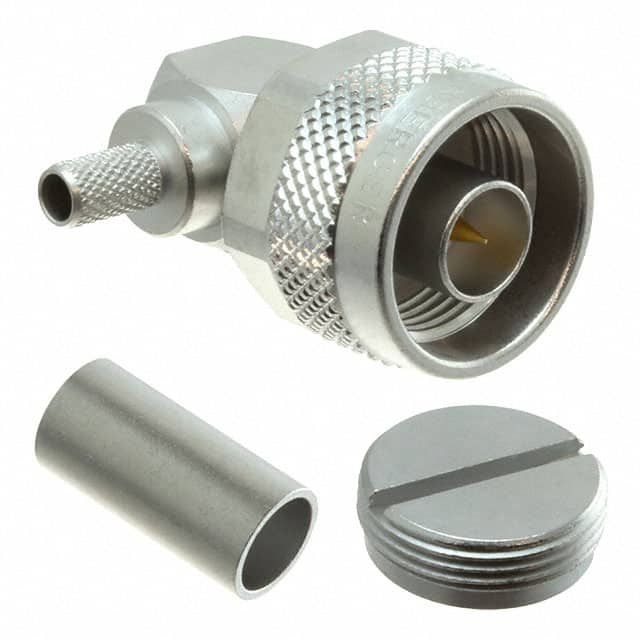

The Rosenberger 53S205-306N5 is an N Type right angle plug designed for 50 Ohm coaxial cable systems. It supports a frequency range from DC to 11 GHz, making it suitable for a wide variety of RF applications. The connector features a threaded coupling for secure mating and is terminated via solder for the center contact and crimp for the shield.
Electrical performance includes a return loss of at least 35 dB from DC to 2 GHz, 23 dB from 2 to 4 GHz, and 20 dB from 4 to 8 GHz. Insertion loss is a maximum of 0.05 dB from DC to 8 GHz. The connector can handle up to 1000 W at 1 GHz and 700 W at 2 GHz (at 20°C, sea level, VSWR 1.0). Working voltage is 500 V rms.
Mechanically, the connector is built with a brass center contact (gold plated) and a brass outer body with flash white bronze over silver plating. It is designed for use with RG-58C and RG-141 cables. The connector is rated for a minimum of 500 mating cycles and operates over a temperature range of -55°C to +155°C.
| Qty | Low | High |
|---|---|---|
| 100+ | $19.16 | $19.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
11 GHz.
-55°C to +155°C.
500 V rms.
RG-58C and RG-141.
Free hanging (in-line), right angle.
