| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Dielectric Withstanding Voltage | |
| Features | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Power (Watts) | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Taper | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

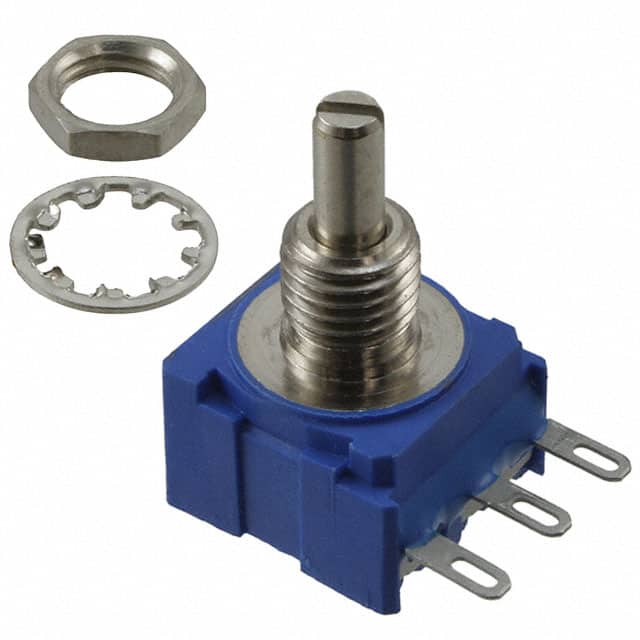

The Bourns 53CAD-E16-D15L is a sealed, 10k ohm logarithmic rotary potentiometer designed for panel mounting. It offers a power rating of 0.25W at 70°C and a total resistance tolerance of ±20%. The resistive material is conductive plastic, providing a theoretical resolution that is essentially infinite.
This potentiometer features a 1/4-32 bushing thread and a 0.500" (12.70mm) long slotted actuator with a diameter of 0.125" (3.18mm). It has a single gang and a single turn, with an effective electrical angle of 270° ±5°. The termination style is solder lug.
Electrical characteristics include an absolute minimum resistance of 2 ohms maximum and a contact resistance variation of 2%. The insulation resistance is a minimum of 1,000 megohms, and it has a dielectric withstanding voltage of 1,500 VAC minimum at sea level. The temperature coefficient is ±1000ppm/°C.
Compliance includes RoHS3 status and MSL 1 Unlimited. This component is suitable for applications requiring precise manual control of resistance values.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 53CAD-E16-D15L potentiometer has a resistance value of 10k ohms.
The power rating is 0.25W at 70°C.
This potentiometer features a logarithmic taper.
The tolerance is ±20%.
It is designed for panel mounting.
The resistive material is conductive plastic.
The effective electrical angle is 270° ±5°.
