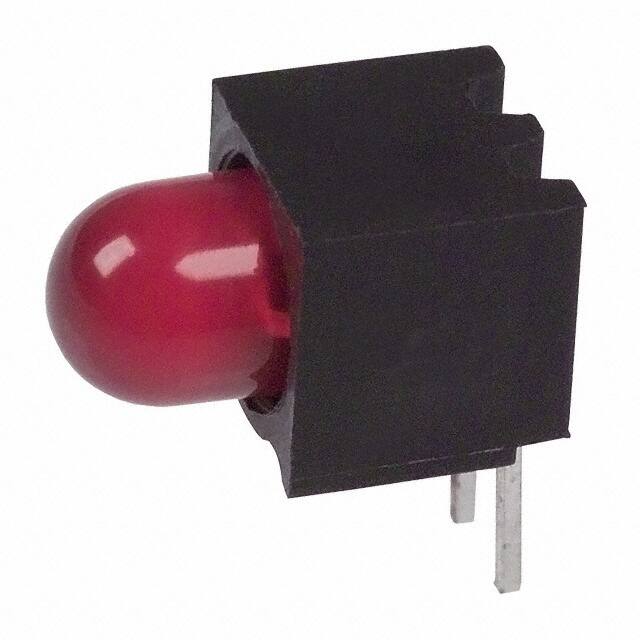

5380H1 The Visual Communications Company - VCC 5380H1 is a red LED with a T1-3/4 lens size. It is designed for PCB mounting.
Mfr Part #:

5380H1

Available from 1 distributors
Mfr Name: Visual Communications Company - VCC
Visual Communications Company - VCC
The Visual Communications Company - VCC 5380H1 is a red LED with a T1-3/4 lens size. It is designed for PCB mounting.
✓ Total Stock: 113 pcs
$ Price Range: $0.99

5380H1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
113 pcs
On Request
113 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5380H1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Lens Size
Lens Style
Lens Type
Millicandela Rating
Mounting Type
Voltage Rating
Wavelength
View Similar Products (0)

5380H1 Description

Short technical summary and product information.

The Visual Communications Company - VCC 5380H1 is a red LED indicator designed for through-hole, right-angle PCB mounting. This component features a 5mm, T-1 3/4 diffused, tinted lens with a round domed top.



Key electrical specifications include a nominal forward current of 10mA and a forward voltage of 2V. The luminous intensity is rated at 6.3mcd, with a wavelength of 650nm. The LED is a single-configuration unit.



This LED is suitable for various indicator applications on printed circuit boards where a right-angle orientation is required. Its through-hole mounting ensures a secure connection.

5380H1 Quick Information

Product Type: LED
Canonical Name: Visual Communications Company - VCC 5380H1 Red LED
Subcategory: Circuit Board Indicator

5380H1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5380H1 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

5380H1 Features

  • Red LED with T1-3/4 lens.
  • Through-hole, right-angle mounting.
  • 10mA forward current, 2V forward voltage.
  • 6.3mcd luminous intensity.
  • Diffused, tinted lens.

5380H1 Applications

  • Used as indicator lights on circuit boards.
  • Suitable for red LED display applications.
  • Ideal for panel status indicators.
  • Used in electronic signaling and alert systems.
  • Suitable for decorative lighting in electronic devices.

5380H1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the forward current for the 5380H1 LED?

The nominal forward current is 10mA.

What is the forward voltage of the 5380H1 LED?

The nominal forward voltage is 2V.

What is the luminous intensity of the 5380H1 LED?

The luminous intensity is rated at 6.3mcd.

What is the wavelength of the 5380H1 LED?

The wavelength is 650nm.

How is the 5380H1 LED mounted?

It is mounted through hole at a right angle.
