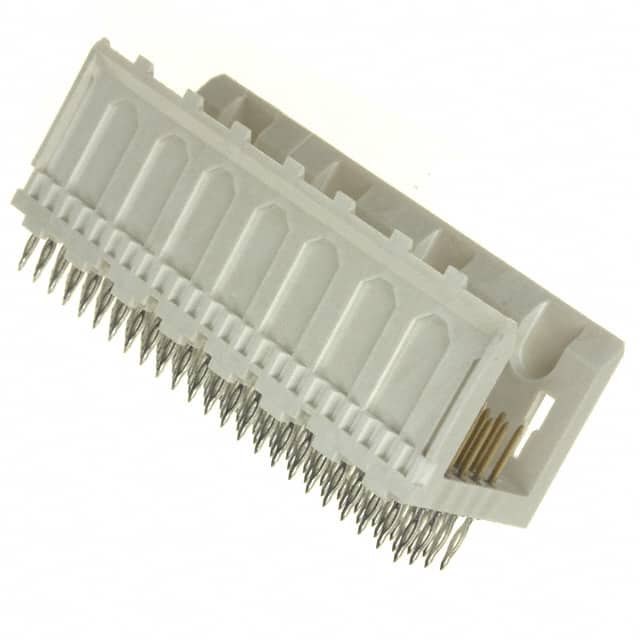

536514-3 The 536514-3 is a 96-position Futurebus header from TE Connectivity with 4 rows on 2.00mm pitch. It features through-hole press-fit termination and gold-plated contacts for backplane interconnect applications.
Mfr Part #:

536514-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The 536514-3 is a 96-position Futurebus header from TE Connectivity with 4 rows on 2.00mm pitch. It features through-hole press-fit termination and gold-plated contacts for backplane interconnect applications.
✓ Total Stock: 1,812 pcs

536514-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
1,812 pcs
On Request
1812 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

536514-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Termination
Termination Style
View Similar Products (0)

536514-3 Description

Short technical summary and product information.

TE Connectivity 536514-3 is a 96-position Futurebus header with male pins. The connector is arranged in 4 rows with all positions loaded, and uses a 2.00mm (0.079") pitch. It is designed as a specialized backplane connector for high-density board-to-board interconnect.



The termination is through-hole with a press-fit style, allowing compliant-pin insertion without soldering in suitable backplane assemblies. Gold contact finish provides a durable, corrosion-resistant mating surface.



This header targets backplane and dense interconnect applications where high pin counts and compact spacing are required.

536514-3 Quick Information

Product Type: Backplane Connector
Series: Futurebus
Canonical Name: Futurebus 96-Position 4-Row Header
Subcategory: Specialized Backplane Connectors

536514-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

536514-3 Features

  • 96 positions arranged in 4 rows.
  • 2.00mm pitch for high-density layouts.
  • Through-hole press-fit termination for solderless mounting.
  • Gold contact finish for reliable connections.

536514-3 Applications

  • Backplane interconnect for dense electronic systems.
  • Board-to-board connections in telecom racks.
  • High-pin-count signal distribution in industrial systems.

536514-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 536514-3 have?

The connector has 96 positions, with all positions loaded.

What is the pitch of the 536514-3?

The pitch is 2.00mm (0.079").

What is the mounting type for this connector?

It has a through-hole mounting type with press-fit termination.

How many rows does the 536514-3 have?

It has 4 rows.

What is the contact finish on the 536514-3?

The contact finish is gold.

What termination style is used?

The termination style is press-fit.

What type of connector is the 536514-3?

It is a Futurebus header with male pins.
