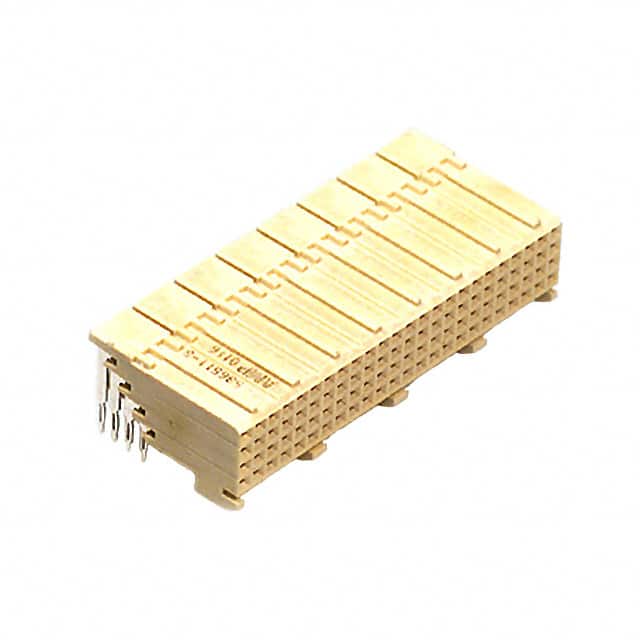

The TE Connectivity 536511-3 is a Futurebus backplane connector designed for high-density board-to-backplane interconnections. It features a receptacle with 96 female socket contacts arranged in 4 rows on a 2.00mm pitch, providing a compact and reliable connection solution.
This connector uses press-fit termination for solderless, gas-tight connections, and is mounted via board edge through hole right angle orientation. The contacts are finished with gold for reliable signal integrity. A spacer feature is included for proper alignment during assembly.
The connector body is natural in color. It is designed for use in specialized backplane applications where high pin count and space efficiency are required.
The connector style is Futurebus.
It has 96 positions, all loaded.
The pitch is 2.00mm (0.079 inches).
It uses board edge, through hole, right angle mounting.
It uses press-fit termination.
The contact finish is gold.
RoHS compliance is unverified; source conflict exists between distributor and precomputed data.
