| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
635 pcs
|
635 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

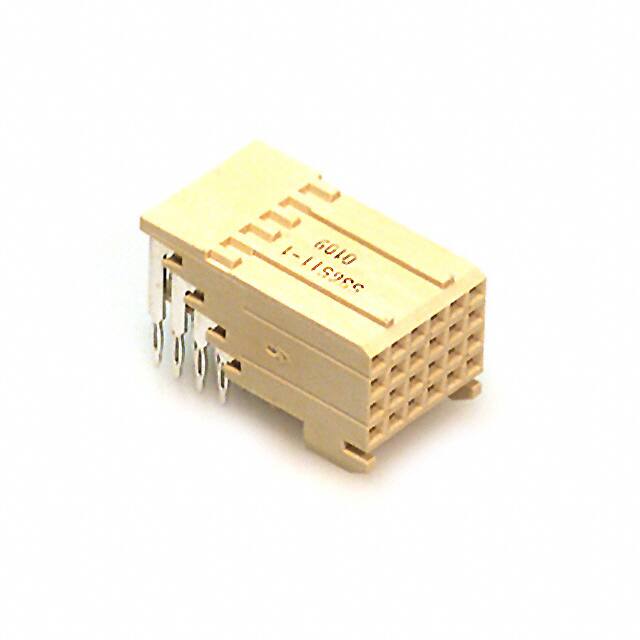

The TE Connectivity 536511-1 is a specialized backplane connector designed for Futurebus systems. It is a receptacle with 24 female socket contacts, all positions loaded, arranged in 4 rows with a 2.00mm pitch. The connector features a board edge, through hole, right angle mounting configuration with press-fit termination for reliable solderless connections. The contacts are finished with gold for corrosion resistance and reliable signal integrity. The connector body is natural in color and includes integrated board guide and spacer features for alignment and standoff during assembly. This connector is RoHS3 compliant and has an MSL of 1 (unlimited).
24 positions, all loaded.
2.00mm.
Board edge, through hole, right angle.
Press-fit.
Gold.
4 rows.
Board guide and spacer.
