536510-2

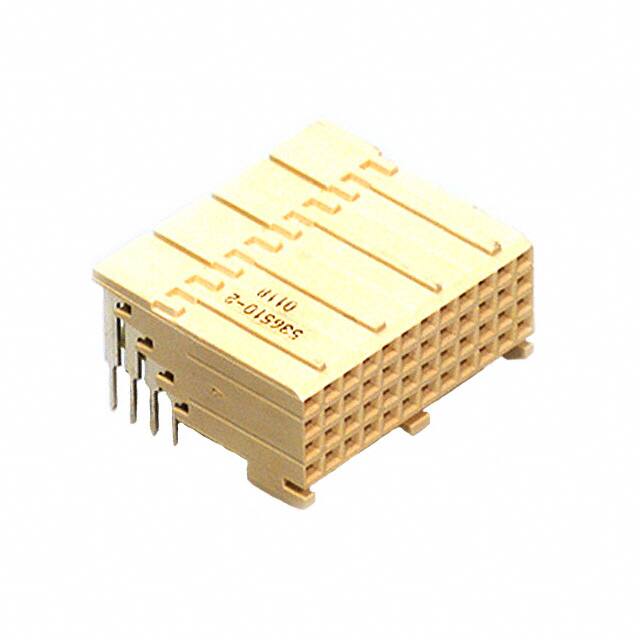

The TE Connectivity 536510-2 is a Futurebus receptacle connector designed for backplane applications. This connector features 48 positions arranged in 4 rows with a 2.00mm (0.079") pitch, providing a compact and reliable interconnection solution for high-density systems.

The connector uses a board edge, through-hole, right angle mounting configuration with solder termination, making it suitable for perpendicular board-to-board connections in backplane architectures. The female socket contacts are finished with gold, ensuring reliable electrical performance and corrosion resistance. The natural color housing includes a spacer feature to aid in proper board alignment during assembly.

This connector is categorized under specialized backplane connectors, indicating its use in specific high-performance computing, telecommunications, and industrial systems that require the Futurebus interface standard. All 48 positions are loaded, providing full signal path capability for the application.

With its 2.00mm pitch and 4-row configuration, this connector offers a balance of density and signal integrity for backplane designs. The right angle orientation allows for efficient use of board space in card-edge mounting scenarios.
