| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
71 pcs
|
71 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

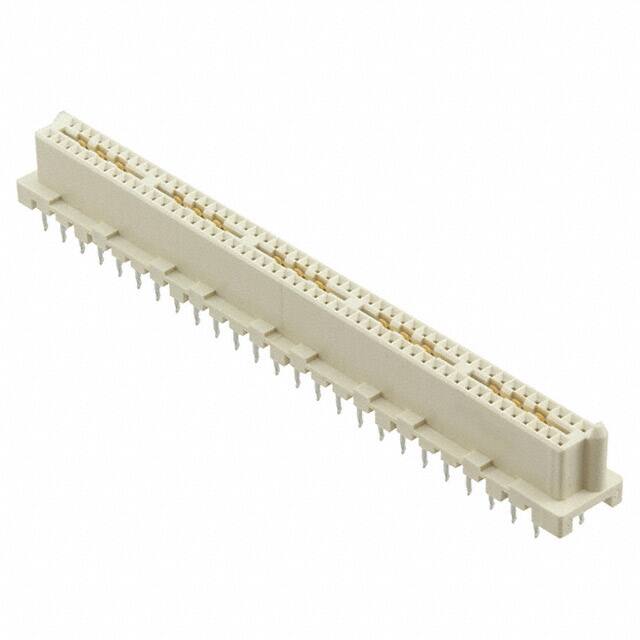

The 536279-4 from TE Connectivity is a high-density board-to-board receptacle connector designed for use in electronic interconnections requiring a compact, reliable interface. This connector features 100 positions arranged in two rows with a 1.27mm pitch (0.050 inches) and a row spacing of 2.54mm (0.100 inches). It is a through-hole mounting type with solder termination, ensuring secure mechanical attachment and robust electrical connections.
The receptacle accepts female sockets, and the contacts are finished with 30.0µin (0.76µm) of tin-lead, providing good solderability and resistance to corrosion. The connector includes a push-pull fastening mechanism and features a board guide and ground bus (plane) for alignment and grounding purposes. The insulation is natural-colored and has a height of 8.13mm (0.320 inches).
This connector supports multiple mated stacking heights of 10.92mm, 17.78mm, and 18.75mm, offering flexibility in board-to-board spacing. It is rated for 30VAC and can operate over a wide temperature range of -65°C to 125°C, making it suitable for various industrial and commercial applications. The contact length is 2.41mm (0.095 inches).
The through-hole design and solder termination make it compatible with standard PCB assembly processes. The ground bus feature aids in managing signal integrity and reducing electromagnetic interference. Overall, this connector is a reliable choice for high-density board-level interconnections.
100 positions.
1.27mm (0.050 inches).
30VAC.
Through hole.
-65°C to 125°C.
2 rows.
Tin-lead with a thickness of 30.0µin (0.76µm).
