| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
984 pcs
|
984 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

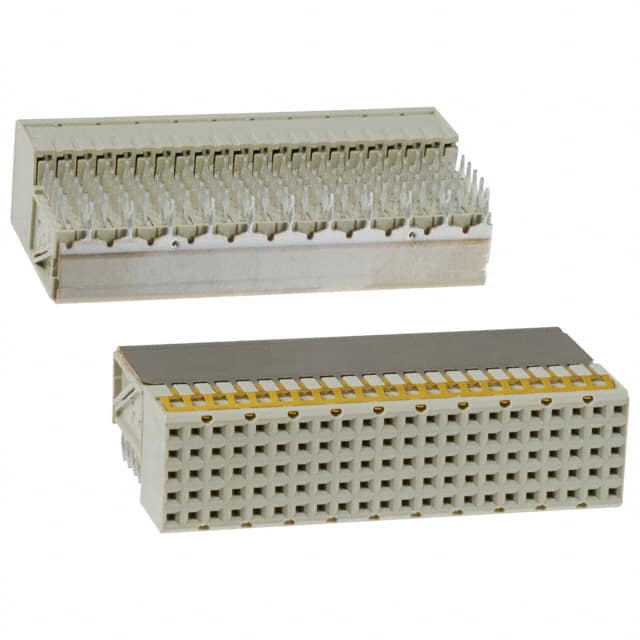

The TE Connectivity 5352152-1 is a hard metric backplane connector in the Z-PACK family. It is a receptacle with female sockets, featuring 120 positions (110 signal + 10 ground) arranged in 5+1 rows. The connector has a 2.00mm pitch and is designed for through-hole, right-angle mounting with press-fit termination. The contacts are gold-plated with a thickness of 30.0µin (0.76µm).
This connector is specifically designed for CompactPCI J2/J5 applications and conforms to the B 22 connector style. The press-fit termination allows for reliable, solderless connections in backplane systems. The connector is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
The right-angle orientation makes it suitable for mezzanine or daughtercard configurations in standard 19-inch rack systems. The 2.00mm pitch supports high-density signal routing while maintaining signal integrity. The gold contact finish ensures reliable mating over multiple cycles. This connector is commonly used in telecommunications, data communications, and industrial control systems requiring high-density backplane interconnections.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.25 | $23.25 |
| 12+ | $19.51 | $19.51 |
| 36+ | $18.06 | $18.06 |
| 60+ | $17.42 | $17.42 |
| 108+ | $16.71 | $16.71 |
| 252+ | $15.74 | $15.74 |
| 504+ | $14.99 | $14.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions (110 signal + 10 ground).
2.00mm.
Through-hole, right-angle with press-fit termination.
B 22 style for CompactPCI J2/J5 applications.
Gold, 30.0µin (0.76µm).
5+1 rows.
