| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-23 21:33:16 |
| Category | |
| Manufacturer Name | |
| CSA | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

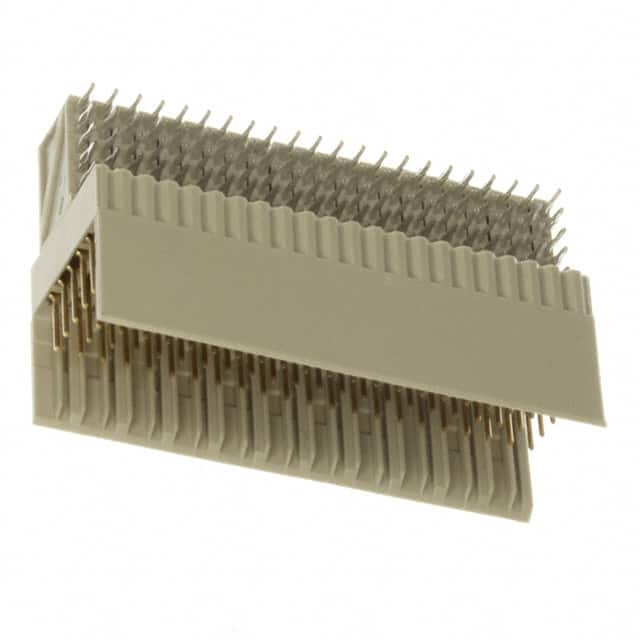

The TE Connectivity 5352131-1 is a 2mm HM (Hard Metric) backplane connector designed for high-density board-to-backplane interconnections. This header features 110 male pins arranged in 5 rows with a 2.00mm pitch, providing a compact and reliable connection solution.
It utilizes a press-fit termination method, eliminating the need for soldering and enabling efficient assembly. The connector is mounted via board edge, through hole, right angle configuration, suitable for perpendicular card-to-backplane orientations. Contacts are finished with 30.0µin (0.76µm) gold for reliable signal integrity.
This connector is part of the TE 2mm HM series and is used in backplane applications requiring high pin counts and robust mechanical retention. The part has been updated with a CSA mark per product change notification P-17-014249.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.60 | $26.60 |
| 12+ | $22.32 | $22.32 |
| 36+ | $20.66 | $20.66 |
| 60+ | $19.92 | $19.92 |
| 108+ | $19.12 | $19.12 |
| 252+ | $18.01 | $18.01 |
| 504+ | $17.15 | $17.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a Header, Male Pins connector.
It has 110 positions, all loaded.
The pitch is 2.00mm (0.079 inches).
It uses Press-Fit termination.
It is Board Edge, Through Hole, Right Angle mounting.
The contact finish is Gold with a thickness of 30.0µin (0.76µm).
