| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
506 pcs
|
506 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
376 pcs
|
376 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
376 pcs
|
376 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

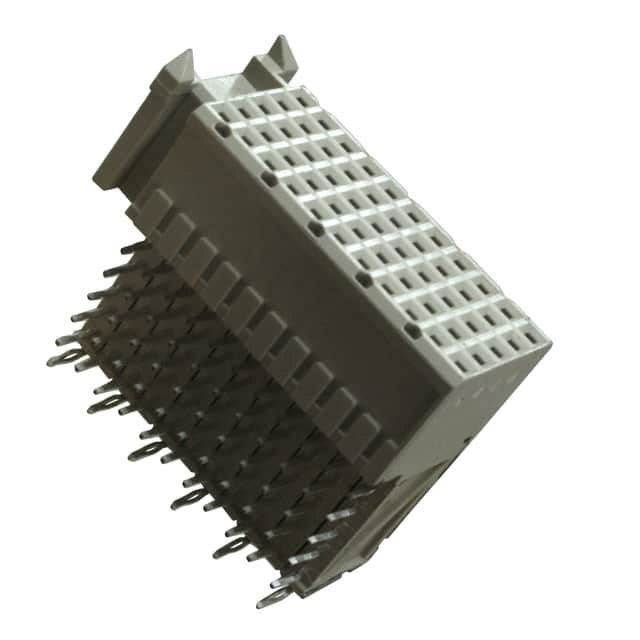

The TE Connectivity 5352115-1 is a Z-PACK 2mm HM backplane connector designed for CompactPCI applications. It is a receptacle with female sockets in a C 11 style, featuring 55 positions loaded across 5 rows at a 2mm pitch. The connector supports board edge, through hole, and right angle mounting with press-fit termination for reliable solderless assembly.
The contacts are gold-plated with a thickness of 30.0µin (0.76µm), ensuring low resistance and corrosion resistance. This connector is suitable for high-density backplane systems in telecommunications, data communications, and industrial control environments.
The press-fit termination eliminates the need for soldering, reducing assembly time and improving reliability. The right angle orientation allows for efficient board layout in compact chassis designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.30 | $12.30 |
| 22+ | $9.88 | $9.88 |
| 44+ | $9.41 | $9.41 |
| 66+ | $9.15 | $9.15 |
| 88+ | $7.42 | $7.42 |
| 110+ | $8.82 | $8.82 |
| 154+ | $7.28 | $7.28 |
| 264+ | $8.30 | $8.30 |
| 352+ | $6.99 | $6.99 |
| 506+ | $7.92 | $7.92 |
| 550+ | $6.12 | $6.12 |
| 1,012+ | $7.55 | $7.55 |
| 1,100+ | $5.64 | $5.64 |
| 3,102+ | $5.24 | $5.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
55 positions, all loaded.
2.00mm (0.079").
Board edge, through hole, right angle.
Press-fit.
Gold, 30.0µin (0.76µm).
C 11.
CompactPCI.
