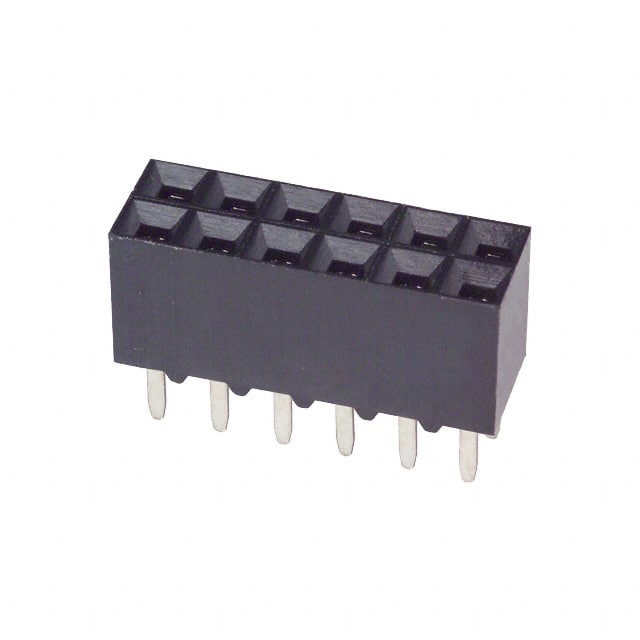

534998-6 TE Connectivity 534998-6 is a 12 position, 2 row, through hole receptacle with female socket contacts on a 2.54mm pitch. Rated for 2A with an operating temperature range of -65°C to 125°C.
Mfr Part #:

534998-6

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 534998-6 is a 12 position, 2 row, through hole receptacle with female socket contacts on a 2.54mm pitch. Rated for 2A with an operating temperature range of -65°C to 125°C.
✓ Total Stock: 594 pcs
$ Price Range: $2.73 - $4.80

534998-6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
594 pcs
On Request
594 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

534998-6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Style
Tape & Reel
Termination
View Similar Products (0)

534998-6 Description

Short technical summary and product information.

The TE Connectivity 534998-6 is a 12 position, dual row receptacle designed for board to board or cable connections. It features female socket contacts with a Tin-Lead finish and a 2.54mm pitch, making it compatible with standard 0.100 inch header systems.



The connector is rated for 2A per contact and operates over a wide temperature range from -65°C to 125°C. The through hole mounting with solder termination ensures reliable mechanical attachment to the PCB. The push-pull fastening type allows for easy mating and unmating.



This receptacle is suitable for use in a variety of electronic applications requiring a compact, reliable interconnection solution. The black insulation provides visual contrast for assembly and inspection.

534998-6 Quick Information

Product Type: Receptacle
Canonical Name: TE Connectivity 534998-6 12 Position Dual Row 2.54mm Pitch Through Hole Receptacle with Female Socket Contacts
Subcategory: Female Socket Receptacle

534998-6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

534998-6 Estimated Pricing

Qty Low High
1+ $4.80 $4.80
10+ $4.37 $4.37
25+ $4.14 $4.14
111+ $3.85 $3.85
259+ $3.37 $3.37
518+ $3.27 $3.27
1,036+ $2.80 $2.80
2,516+ $2.73 $2.73

Estimated market price range - modelled values for guidance only, not live distributor offers.

534998-6 Features

  • 12 position dual row receptacle.
  • 2.54mm pitch for standard headers.
  • Through hole solder termination.
  • Push-pull fastening type.
  • Wide -65°C to 125°C operating range.

534998-6 Applications

  • Ideal for board to board connections.
  • Used for cable to board interfaces.
  • Suitable for industrial control systems.

534998-6 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 534998-6 have?

The connector has 12 positions.

What is the pitch of the 534998-6?

The pitch is 2.54mm (0.100 inches).

What is the current rating of the 534998-6?

The current rating is 2A per contact.

What is the mounting type for the 534998-6?

The mounting type is through hole with solder termination.

What is the operating temperature range of the 534998-6?

The operating temperature range is -65°C to 125°C.
