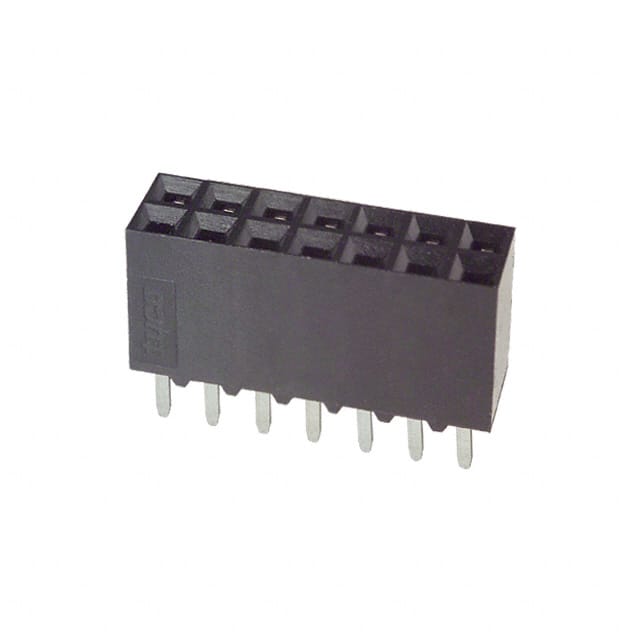

This is a 14-position receptacle connector from TE Connectivity, part of the 534206 series. It features a female socket contact type with a 2.54mm pitch and 2.54mm row spacing. The connector is designed for board-to-board or cable applications with a push-pull fastening type.
The housing is made of flame retardant, glass filled thermoplastic in black color. Contacts are phosphor bronze with duplex plating: 0.76µm minimum gold in contact area and bright tin-lead on leads. The contact finish thickness is 0.76µm. The insulation height is 8.13mm and contact length is 2.92mm.
Electrical rating is 2A current. Operating temperature range is -65°C to 125°C. Mounting type is through hole with solder termination. The connector has 2 rows with all positions loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.88 | $4.88 |
| 32+ | $3.82 | $3.82 |
| 128+ | $3.47 | $3.47 |
| 512+ | $3.14 | $3.14 |
| 1,024+ | $2.99 | $2.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
2.54mm (0.100 inches).
2A.
Through hole.
-65°C to 125°C.
Tin-lead with 0.76µm thickness.
RoHS compliance is unverified according to available data.
