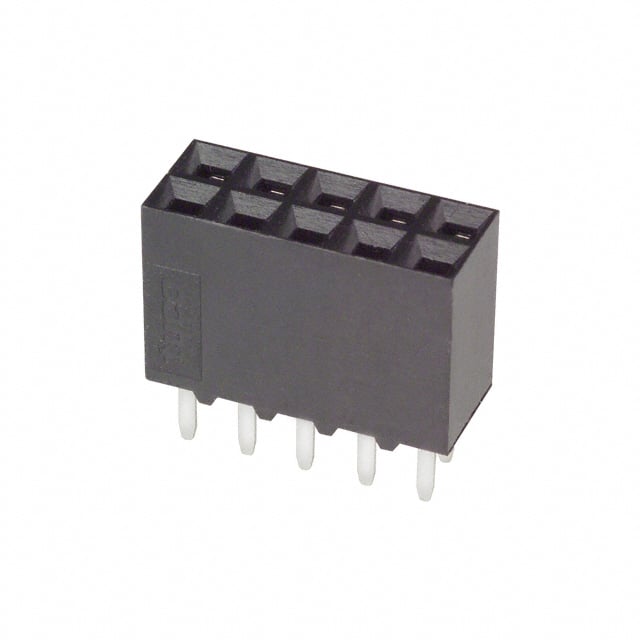

534206-5 by TE Connectivity AMP Connectors

534206-5 by TE Connectivity AMP Connectors

CONN RCPT 10POS 0.1 GOLD PCB

DistiPart #
Manufacturer Name TE Connectivity AMP Connectors
Manufacturer Part #

534206-5

Manufacturer Standard Lead Time 12 Weeks
EDA/CAD Models
Are you a distributor of this part? Register now to receive RFQ from buyers.
Download Datasheet
Other Documents
Estimated Stock: 18578 *Can dispatch immediately
Estimated Price $3.31
Estimated Lead time 12 Weeks
Minimum Order Quantity: 1

Specifications of 534206-5

Product Attribute
Attribute Value
Select Attribute
Category
Headers, Receptacles, Female Sockets
Manufacturer
TE Connectivity AMP Connectors
Connector Type
Receptacle
Contact Finish Thickness
30.0碌in (0.76碌m)
Contact Finish
Tin-Lead
Contact Type
Female Socket
Fastening Type
Push-Pull
Insulation Color
Black
Insulation Height
0.320" (8.13mm)
Mounting Type
Through Hole
Number of Positions
10
Number of Positions Loaded
All
Number of Rows
2
Pitch
0.100" (2.54mm)
Style
Board to Board or Cable
Termination
Solder
Current Rating (Amps)
2A
Operating Temperature
-65掳C ~ 125掳C
Row Spacing
0.100" (2.54mm)
Contact Length
0.115" (2.92mm)
View All Features
DistyParts - Get Multiple quotes in one request

Product Compliance of 534206-5

Attributes Description
CNHTS 98765434567
USHTS 45678987654
TARIC 67898765567
ECCN 3A991

Documents of 534206-5

Datasheet
  Datasheet

Environmental & Export Classifications of 534206-5

Attributes Description
RoHS Status RoHS3 Compliant
Moisture Sensitivity Level (MSL) 1 Unlimited
REACH Status REACH Unaffected
ECCN 3A991
HTSUS 9876.21.0030

Additional Resources of 534206-5

Attributes Description
Other Names RMCF 1/16S 0 R RMCF0402ZT0R00-ND RMCF1/16S0RTR-ND RMCF1/16S0RCT RMCF0402ZT0R00CT RMCF1/16S0RDKR-ND RMCF1/16S0RDKR
Standard Package 10,000
