| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,300 pcs
|
3300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Lead Style | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Stud | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

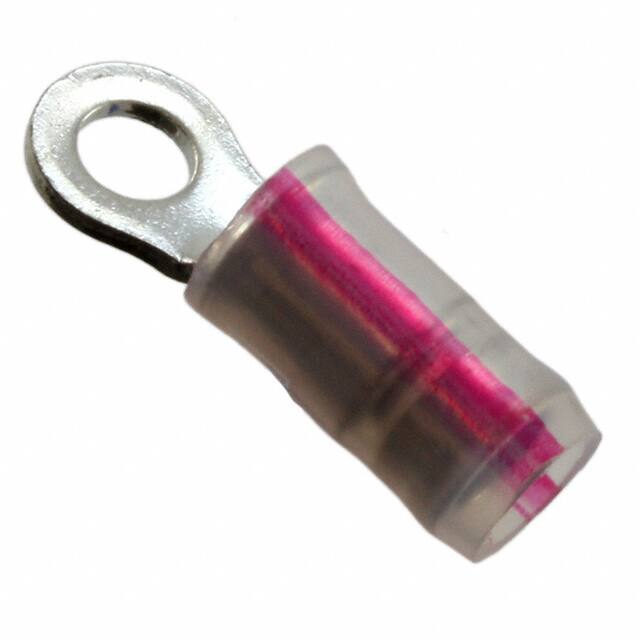

The TE Connectivity 53405-1 is a circular ring terminal designed for wire termination applications. It accepts 16-22 AWG wire and features a #4 stud size. The terminal uses a crimp termination method and is insulated to prevent short circuits. The contact is made of copper with a tin-lead finish, providing reliable conductivity and corrosion resistance. The terminal has a thickness of 0.79mm, width of 5.54mm, and length of 17.07mm. It is radiation resistant, making it suitable for harsh environments. The insulation is natural with a red stripe for easy identification. This terminal is free hanging (in-line) and requires a compatible crimp tool for installation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.18 | $1.18 |
| 10+ | $1.00 | $1.00 |
| 25+ | $0.94 | $0.94 |
| 50+ | $0.90 | $0.90 |
| 100+ | $0.85 | $0.85 |
| 250+ | $0.80 | $0.80 |
| 500+ | $0.76 | $0.76 |
| 1,000+ | $0.73 | $0.73 |
| 3,000+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16-22 AWG.
#4 stud.
Crimp.
Yes, insulated.
Copper with tin-lead plating.
Free hanging (in-line).
Natural with red stripe.
