| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
242 pcs
|
242 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

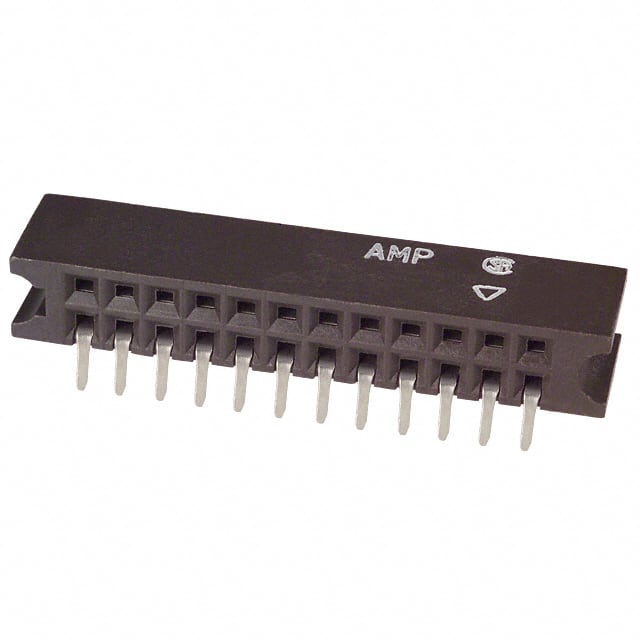

The TE Connectivity 532956-4 is a 24-position board-to-board receptacle designed for high-density PCB interconnects. It features a 2.54mm (0.100") pitch and 2 rows of female socket contacts, all positions loaded. The connector uses a push-pull fastening mechanism with guide pin ears for secure alignment. The through hole, right angle mounting allows for compact PCB layouts. Contact finish is Tin-Lead with a thickness of 30µin (0.76µm), and the contact length is 2.92mm (0.115"). The insulation is black, with a height of 6.05mm (0.238") and row spacing of 2.54mm (0.100"). Termination is via solder. This receptacle is suitable for board-to-board applications requiring reliable connections.
| Qty | Low | High |
|---|---|---|
| 900+ | $12.57 | $12.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions, all loaded.
2.54mm (0.100").
Through hole, right angle.
Tin-Lead with a thickness of 30µin (0.76µm).
Black.
RoHS3 compliant (unverified).
Push-pull.
