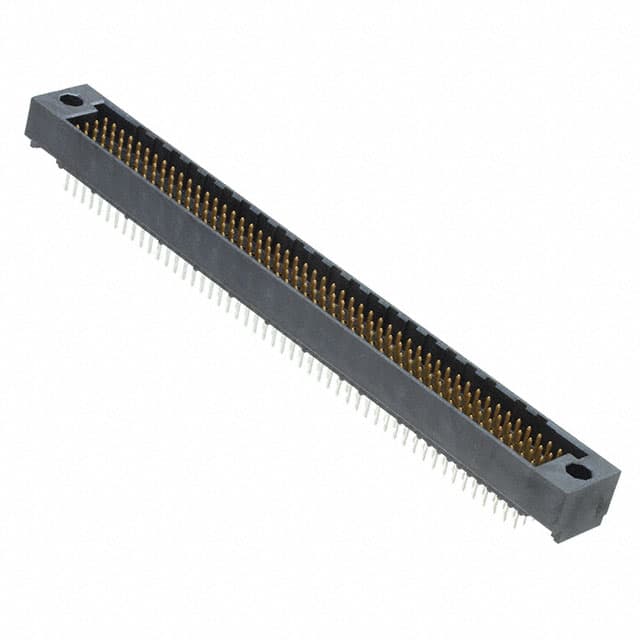

532436-7

The TE Connectivity 532436-7 is a high density header connector from the AMP-HDI series, designed for board-to-board applications requiring reliable electrical and mechanical performance. It features 200 positions arranged in 4 rows with a 2.54mm pitch, providing a compact interconnect solution for dense PCB layouts. The connector uses through hole mounting and solder termination for secure attachment. Contacts are gold plated (30.0µin) over copper alloy, ensuring low contact resistance (15 mΩ max) and corrosion resistance. The housing is black glass-filled thermoplastic with UL94 V-0 flammability rating. Electrical ratings include 3A current per contact and 1000 MΩ minimum insulation resistance. The connector operates over a wide temperature range of -65 to 125°C and is rated for 250 mating cycles. Mechanical features include a mating guide for alignment, with mating force of 14.1 gf max and unmating force of 56.7 gf min per contact. This connector meets MIL-C-55302/173-181, EIA 364, and IEC 60512 standards, making it suitable for rugged environments such as aerospace, military, industrial instrumentation, and data communications.
