| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style |

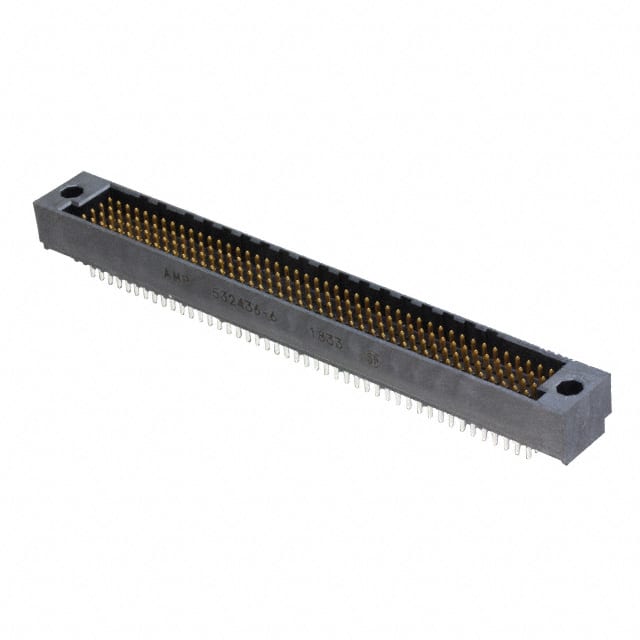

The TE Connectivity 532436-6 is a high density header connector designed for backplane and high-density PCB applications. It features 180 male pin positions arranged in 4 rows with a 2.54mm (0.100") pitch, providing a compact interconnect solution. The connector uses through hole mounting with solder termination for reliable mechanical and electrical connections. Contacts are finished with 30.0µin (0.76µm) gold plating, ensuring excellent conductivity and corrosion resistance. The housing is black and includes a mating guide feature to assist alignment during assembly. This connector is part of TE's high density (HDC/HDI/HPC) series, suitable for demanding environments where space is limited. All 180 positions are loaded, maximizing signal density. The 2.54mm pitch is a standard industry spacing, compatible with many backplane designs. No electrical ratings are specified in the available data; consult the manufacturer for current and voltage ratings.
| Qty | Low | High |
|---|---|---|
| 1+ | $102.09 | $102.09 |
| 12+ | $86.79 | $86.79 |
| 28+ | $83.37 | $83.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 180 positions, all loaded.
The pitch is 2.54mm (0.100").
Through hole mounting with solder termination.
Gold contact finish with 30.0µin (0.76µm) thickness.
It has 4 rows.
Yes, it includes a mating guide feature.
Black.
