| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

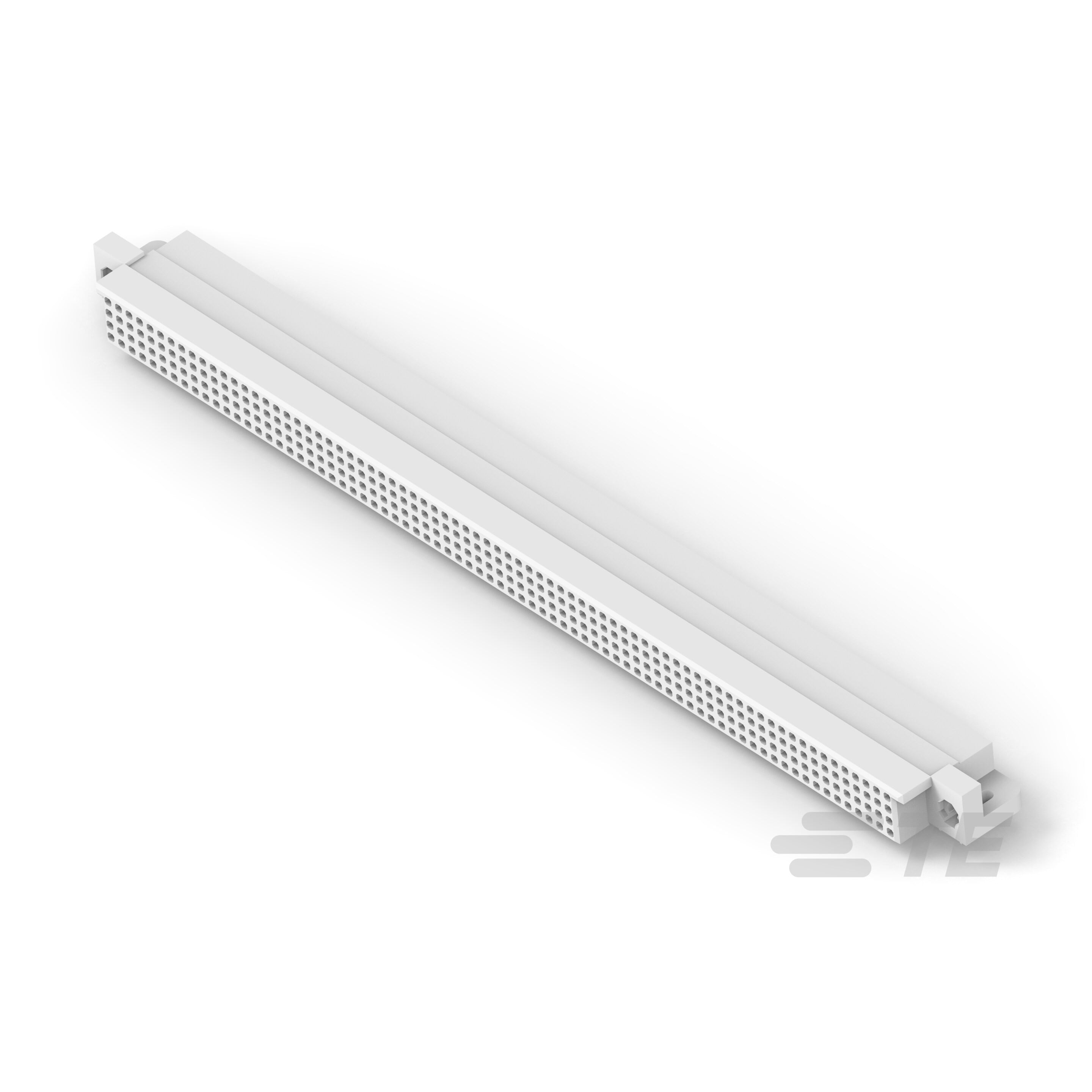

The TE Connectivity 532434-2 is a specialized backplane receptacle connector designed for high density interconnection applications. It offers 120 positions arranged in 4 rows with a 2.54mm pitch, providing a compact and reliable connection solution.
This connector features a through hole right angle mounting style, making it suitable for PCB designs where space is constrained. The contacts are finished with 0.76µm gold plating, ensuring excellent conductivity and corrosion resistance. The housing is natural in color and includes a mating guide for easy alignment during assembly.
All 120 positions are loaded, maximizing the connection density in a single connector. The 2.54mm pitch is compatible with standard PCB layouts and mating headers. This connector is ideal for backplane and midplane applications in telecommunications, data communications, and industrial equipment where high reliability and signal integrity are required.
The 532434-2 has 120 positions arranged in 4 rows.
The pitch is 2.54mm (0.100 inches).
The mounting type is through hole, right angle.
The contact finish is gold with a thickness of 0.76µm (30µin).
Yes, all 120 positions are loaded.
