| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| EU ELV | |
| EU RoHS | |
| Features | |
| Halogen Content | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Part Status | |
| Pitch | |
| Row Spacing | |
| Solder Process Capability | |
| Termination | |
| Termination Style | |
| Type |

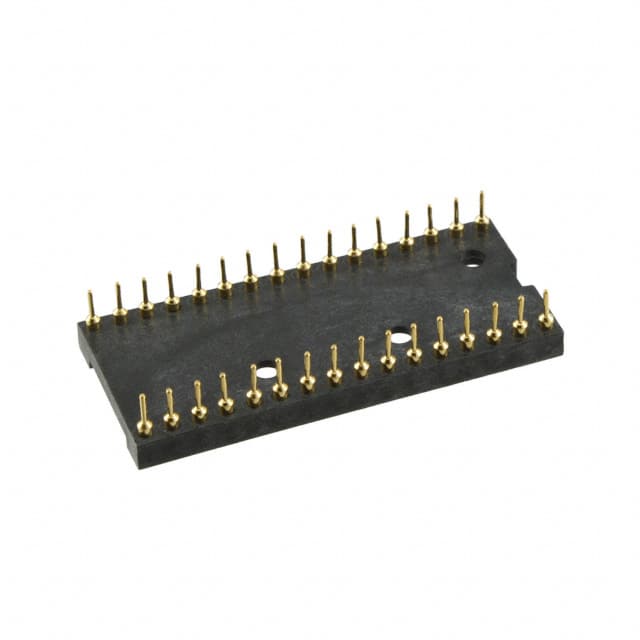

The TE Connectivity 532-AG10D is a 32-position DIP socket designed for through hole mounting. It features a 2.54mm (0.100") pitch and 0.6" (15.24mm) row spacing, accommodating standard DIP IC packages. The socket uses a closed frame polyester housing and copper alloy contacts with a 25.0µin gold finish.
This socket is rated for an operating temperature range of -55°C to 125°C and is wave solder capable to 265°C. It is intended for use in applications requiring reliable interconnection of DIP ICs to printed circuit boards.
Please note this part is classified as Obsolete by the manufacturer and is not compliant with EU RoHS, EU ELV, China RoHS, or REACH due to lead content.
| Qty | Low | High |
|---|---|---|
| 375+ | $4.85 | $4.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 532-AG10D has 32 positions arranged as 2 rows of 16.
The pitch is 2.54mm (0.100").
The mounting type is through hole.
The contact finish is gold with a thickness of 25.0µin (0.63µm).
The operating temperature range is -55°C to 125°C.
No, the 532-AG10D is not EU RoHS compliant due to lead content.
