| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,247 pcs
|
5247 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,247 pcs
|
5247 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA Certified | |
| Circuit Application | |
| Color | |
| Contact Base Material | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Mating Area Plating Material | |
| Contact Mating Area Plating Material Thickness | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Halogen Free | |
| Height | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature Range | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Shunt Style | |
| Termination Style | |
| Type | |
| UL Rating |

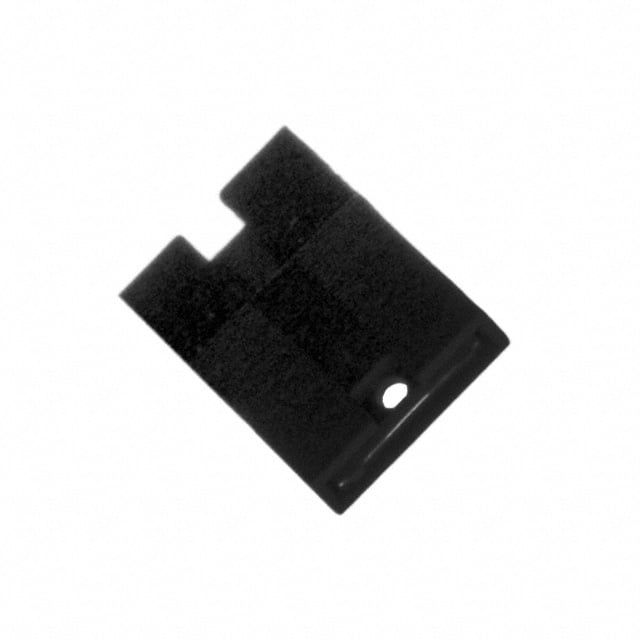

The TE Connectivity AMP 531230-4 is a standard housing, open top board-to-board jumper and shunt designed for printed circuit board applications. It features 2 positions with a 5.08 mm centerline pitch and is rated for a maximum current of 3 A, making it suitable for signal-level circuits.
The shunt is housed in a black, glass-filled polyester housing with a UL 94V-0 flammability rating. The contacts are made of beryllium copper with a tin plating thickness of 2.54 µm. It offers an insulation resistance of 1000 MΩ minimum and operates over a temperature range of -40 to 85 °C.
This component is through-hole mountable with solder termination. It is packaged in a box of 2000 pieces. The part is CSA certified and UL recognized, and it complies with EU RoHS Directive 2011/65/EU and does not contain REACH SVHC.
| Qty | Low | High |
|---|---|---|
| 10+ | $0.75 | $0.75 |
| 30+ | $0.70 | $0.70 |
| 50+ | $0.67 | $0.67 |
| 100+ | $0.64 | $0.64 |
| 250+ | $0.60 | $0.60 |
| 500+ | $0.57 | $0.57 |
| 2,000+ | $0.52 | $0.52 |
| 4,000+ | $0.49 | $0.49 |
| 6,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 3 A.
The pitch is 5.08 mm (0.200 in).
It has 2 positions (1 x 2).
The operating temperature range is -40 to 85 °C.
Yes, it is EU RoHS Directive 2011/65/EU compliant.
The housing is made of glass-filled polyester with a UL 94V-0 flammability rating.
