| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
480 pcs
|
480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Fin Height | |
| Length | |
| Material | |
| Material Finish | |
| Mounting Type | |
| Package Cooled | |
| Power Dissipation @ Temperature Rise | |
| Shape | |
| Termination Style | |
| Thermal Resistance @ Forced Air Flow | |
| Thermal Resistance @ Natural | |
| Type | |
| Width |

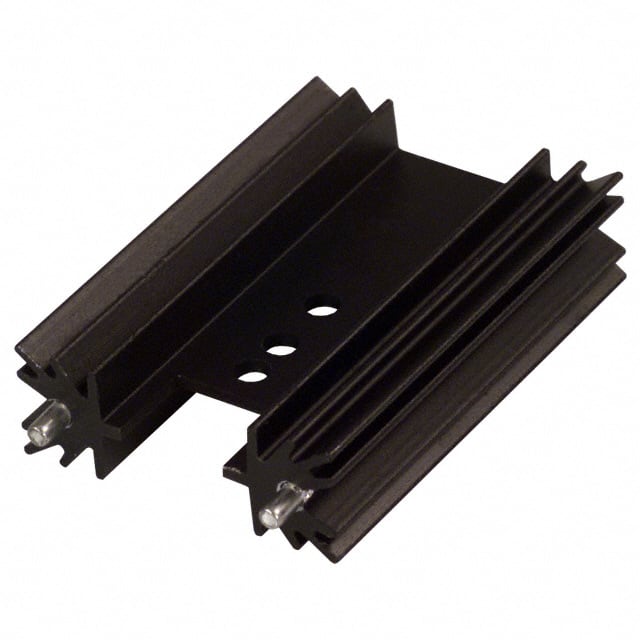

The 531202B02500G is a vertical board level heatsink from Aavid, Thermal Division of Boyd Corporation, designed for cooling TO-220 and TO-202 semiconductor packages. It is constructed from aluminum with a black anodized finish, providing corrosion resistance and improved heat dissipation. The heatsink measures 50.80mm (2.000") in length and 34.93mm (1.375") in width, with a fin height of 12.70mm (0.500").
Thermal performance is rated at 7.50°C/W under natural convection and 4.00°C/W at 600 LFM forced air flow. The power dissipation capability is 5.0W at a 40°C temperature rise. The component uses a bolt-on and PC pin attachment method, and the termination style is PC pin for easy installation on PCBs. The rectangular fin shape optimizes surface area for efficient heat transfer.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
| 10+ | $1.84 | $1.84 |
| 25+ | $1.79 | $1.79 |
| 50+ | $1.74 | $1.74 |
| 100+ | $1.65 | $1.65 |
| 240+ | $1.54 | $1.54 |
| 480+ | $1.44 | $1.44 |
| 1,200+ | $1.38 | $1.38 |
| 2,640+ | $1.30 | $1.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is designed for TO-220 and TO-202 packages.
7.50°C/W in natural convection and 4.00°C/W at 600 LFM forced air flow.
Length: 50.80mm, Width: 34.93mm, Fin Height: 12.70mm.
Aluminum with a black anodized finish.
It uses a bolt-on and PC pin attachment method.
5.0W at a 40°C temperature rise.
RoHS3 compliant (unverified).
