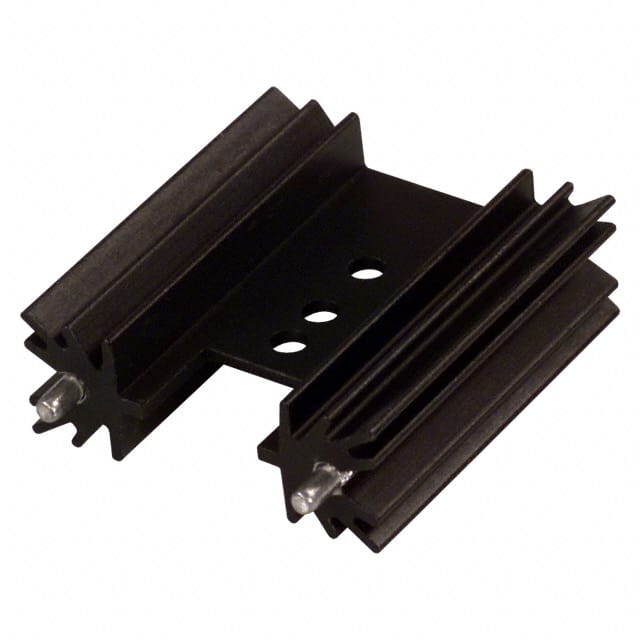

531102B02500G Board level vertical heatsink for TO-220 packages with bolt-on and PC pin attachment. Aluminum with black anodized finish, 38.10mm length, 34.93mm width, 12.70mm fin height.
Mfr Part #:

531102B02500G

Available from 2 distributors
Mfr Name: Aavid, Thermal Division of Boyd Corporation
Aavid, Thermal Division of Boyd Corporation
Board level vertical heatsink for TO-220 packages with bolt-on and PC pin attachment. Aluminum with black anodized finish, 38.10mm length, 34.93mm width, 12.70mm fin height.
✓ Total Stock: 415 pcs
$ Price Range: $0.98 - $1.51

531102B02500G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
270 pcs
On Request
270 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
145 pcs
On Request
145 pcs On Request 1 On Request On Request 2039+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

531102B02500G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Attachment Method
Fin Height
Lead Style
Length
Material
Material Finish
Package Cooled
Power Dissipation @ Temperature Rise
SVHC Present
Shape
Tape & Reel
Termination Style
Thermal Resistance @ Forced Air Flow
Thermal Resistance @ Natural
Type
Width
View Similar Products (0)

531102B02500G Description

Short technical summary and product information.

The 531102B02500G is a board level vertical heatsink designed for cooling TO-220 semiconductor packages. Manufactured by Aavid, Thermal Division of Boyd Corporation, this heatsink features a rectangular finned shape constructed from aluminum with a black anodized finish for enhanced thermal performance and corrosion resistance.



With dimensions of 38.10mm (1.500") length, 34.93mm (1.375") width, and 12.70mm (0.500") fin height, this heatsink provides a natural convection thermal resistance of 10.40°C/W. Under forced air flow of 500 LFM, thermal resistance drops to 3.00°C/W, enabling power dissipation of 7.0W at a 70°C temperature rise.



The attachment method combines bolt-on and PC pin mounting, making it suitable for secure installation on printed circuit boards. The vertical orientation optimizes airflow in convection and forced air environments.

531102B02500G Quick Information

Product Type: Heat Sink
Series: 3531
Canonical Name: Board Level Vertical Heatsink for TO-220, Aluminum, Black Anodized, 38.10mm Length, 34.93mm Width, 12.70mm Fin Height
Subcategory: Vertical Fin Heat Sink

531102B02500G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

531102B02500G Estimated Pricing

Qty Low High
1+ $1.51 $1.51
10+ $1.37 $1.37
25+ $1.33 $1.33
50+ $1.30 $1.30
100+ $1.23 $1.23
250+ $1.15 $1.15
510+ $1.09 $1.09
1,020+ $1.03 $1.03
2,550+ $0.98 $0.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

531102B02500G Features

  • Aluminum construction with black anodized finish.
  • Natural thermal resistance of 10.40°C/W.
  • Forced air thermal resistance 3.00°C/W at 500 LFM.
  • Dissipates 7.0W at 70°C temperature rise.
  • Bolt-on and PC pin attachment method.

531102B02500G Applications

  • Cooling TO-220 semiconductor packages.
  • Board level thermal management applications.
  • Vertical orientation for optimized airflow.
  • Suitable for natural and forced convection.

531102B02500G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the thermal resistance of this heatsink under natural convection?

The natural convection thermal resistance is 10.40°C/W.

What is the thermal resistance under forced air flow?

At 500 LFM forced air flow, the thermal resistance is 3.00°C/W.

What is the power dissipation capability?

The heatsink can dissipate 7.0W at a 70°C temperature rise.

What package is this heatsink designed to cool?

It is designed for TO-220 packages.

What are the dimensions of this heatsink?

Length 38.10mm, width 34.93mm, fin height 12.70mm.

What material and finish does this heatsink have?

Aluminum with black anodized finish.

How is this heatsink attached?

Bolt-on and PC pin attachment.
