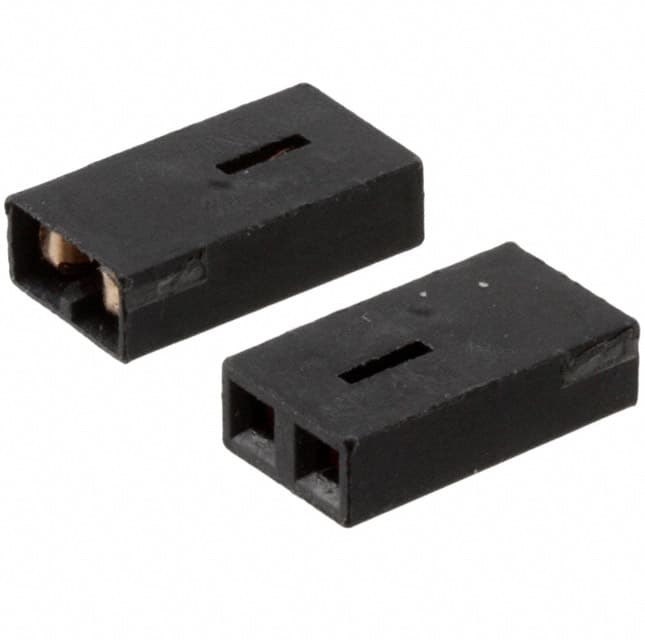

The 530153-2 is a board-to-board jumper and shunt from TE Connectivity's AMP M Series. It is an open top, tandem spring shunt with 2 positions on a 2.54mm (0.100") pitch. The housing is black nylon/polyester with UL94 V-0 flammability rating, and contacts are phosphor bronze with tin plating (per datasheet). The product height is 9.14mm (0.360").
Electrical characteristics include a maximum current rating of 3 A, termination resistance of 20 mΩ, and insulation resistance of 1000 MΩ. It is designed for signal circuit applications and operates over -40 to 85°C. The connector system is board-to-board, terminating to a printed circuit board. It is not sealable and does not include a handle.
Compliance: The product is CSA certified and UL recognized. Note: RoHS compliance status is conflicting between datasheet (not compliant) and existing database (RoHS3 compliant); the datasheet indicates non-compliant. The part is packaged in bags of 5000 loose pieces. It is not low halogen.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.54 | $2.54 |
| 10+ | $2.16 | $2.16 |
| 25+ | $2.03 | $2.03 |
| 50+ | $1.93 | $1.93 |
| 100+ | $1.84 | $1.84 |
| 250+ | $1.72 | $1.72 |
| 500+ | $1.64 | $1.64 |
| 1,000+ | $1.56 | $1.56 |
| 2,500+ | $1.52 | $1.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This shunt has 2 positions arranged in a 1x2 grid.
The pitch is 2.54mm (0.100").
The maximum current rating is 3 A.
The operating temperature range is -40 to 85°C.
The shunt style is open top and the type is tandem spring.
The datasheet specifies the contact mating area plating material as Tin. Note: the existing database entry lists Gold, but this is a reported conflict.
According to the datasheet, the product is not compliant with EU RoHS Directive 2011/65/EU. However, the existing database indicates RoHS3 compliance. This conflict requires verification.
