| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
425 pcs
|
425 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Width | |
| Wire Gauge | |
| Wire Gauge (AWG) |

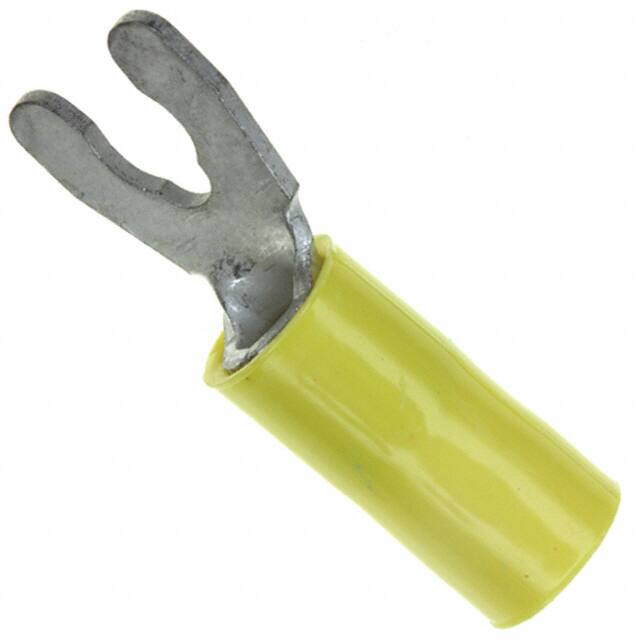

The TE Connectivity 52962-2 is an insulated spade terminal designed for 10-12 AWG wire and a #8 stud size. The terminal is yellow, indicating its wire range and insulation type. It features a brass contact with a tin finish, providing good conductivity and corrosion resistance. The crimp termination ensures a reliable mechanical and electrical connection, while the serrated termination enhances grip on the wire strands.
This terminal is free hanging (in-line) and does not require a specific mounting hole. It is suitable for power distribution, control circuits, and general wiring applications where a secure, insulated connection is needed. The overall length is 28.22 mm (1.111 inches) and width is 9.53 mm (0.375 inches).
The part is RoHS3 compliant and has an MSL of 1 (unlimited). It is also REACH unaffected. Note that compliance data is unverified and should be confirmed with the manufacturer for critical applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.09 | $1.09 |
| 10+ | $0.93 | $0.93 |
| 25+ | $0.87 | $0.87 |
| 50+ | $0.83 | $0.83 |
| 100+ | $0.79 | $0.79 |
| 250+ | $0.74 | $0.74 |
| 500+ | $0.71 | $0.71 |
| 1,000+ | $0.67 | $0.67 |
| 2,500+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10-12 AWG.
#8 stud.
Yes, it is insulated and yellow in color.
Crimp termination.
Brass contact with tin finish.
Length 28.22 mm, width 9.53 mm.
Free hanging (in-line).
