| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Halogen Free | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Stud | |
| Terminal Type | |
| Termination | |
| Width | |
| Wire Gauge |

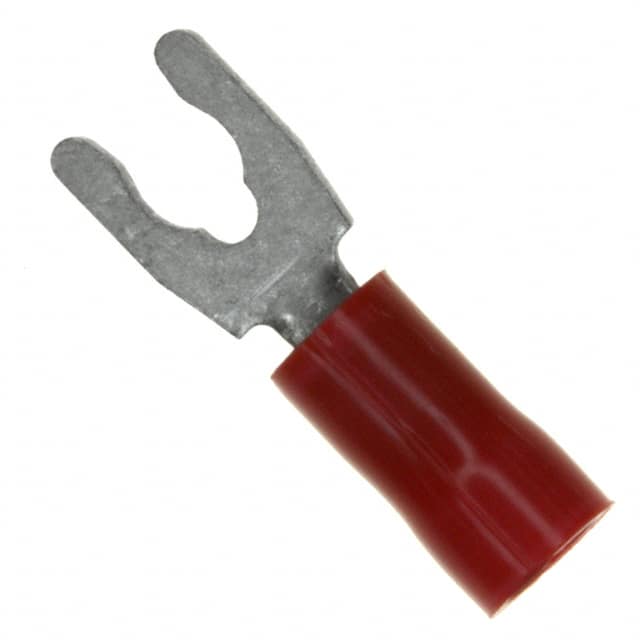

The TE Connectivity 52949-1 is a spring snap spade terminal designed for reliable wire termination in electrical and electronic assemblies. It accepts 16-22 AWG wire and features a #6 stud size for secure mounting. The terminal is insulated with a red color-coded housing and uses a crimp termination method for consistent, gas-tight connections.
The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. The terminal includes a serrated termination feature that enhances grip on the wire during crimping, improving mechanical and electrical reliability. It is designed for free hanging (in-line) mounting, making it suitable for point-to-point wiring applications.
This component is RoHS compliant and does not contain REACH SVHC substances per the latest ECHA candidate list. It is not low halogen, as it contains bromine or chlorine above 900 ppm. The terminal measures 20.60 mm in length and 6.35 mm in width.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
| 10+ | $0.43 | $0.43 |
| 25+ | $0.40 | $0.40 |
| 50+ | $0.39 | $0.39 |
| 100+ | $0.37 | $0.37 |
| 250+ | $0.34 | $0.34 |
| 500+ | $0.33 | $0.33 |
| 1,000+ | $0.31 | $0.31 |
| 2,500+ | $0.29 | $0.29 |
| 5,000+ | $0.28 | $0.28 |
| 10,000+ | $0.27 | $0.27 |
| 15,000+ | $0.26 | $0.26 |
| 25,000+ | $0.25 | $0.25 |
| 35,000+ | $0.24 | $0.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 16-22 AWG wire.
The stud size is #6.
Crimp termination.
Brass contact with tin finish.
Yes, it is EU RoHS compliant per Directive 2011/65/EU including Delegated Directive 2015/863/EU.
Free hanging (in-line) mounting.
Red.
