| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Fin Height | |
| Length | |
| Material | |
| Material Finish | |
| Package Cooled | |
| Power Dissipation @ Temperature Rise | |
| Shape | |
| Thermal Resistance @ Forced Air Flow | |
| Type | |
| Width |

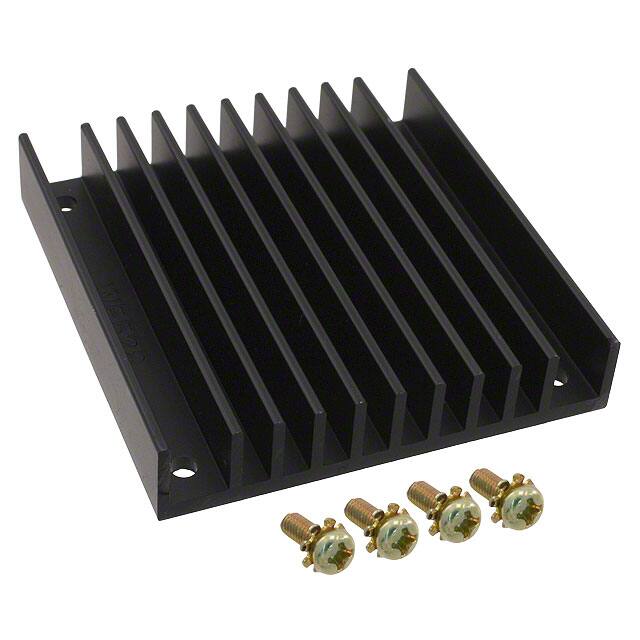

The Wakefield-Vette 528-45AB-MS4 is a board level heat sink designed for cooling half brick DC/DC converters. It features a rectangular finned shape and is constructed from aluminum with a black anodized material finish for enhanced thermal performance and corrosion resistance.
This heat sink has a length of 61.00mm (2.402"), a width of 57.91mm (2.280"), and a fin height of 11.43mm (0.450"). It offers a thermal resistance of 3.20°C/W at 300 LFM forced air flow and can dissipate up to 7.0W at a 60°C temperature rise. The attachment method is bolt-on with thermal material.
Designed for board-level applications, this heat sink is suitable for use with half brick DC/DC converters from the BXB50, BXB75, BXB100, and BXB150 series. Its compact size and finned design provide effective thermal management in space-constrained environments.
The thermal resistance is 3.20°C/W at 300 LFM forced air flow.
It can dissipate up to 7.0W at a 60°C temperature rise.
The heat sink measures 61.00mm (2.402") in length, 57.91mm (2.280") in width, and has a fin height of 11.43mm (0.450").
It is made of aluminum with a black anodized finish.
It is designed to cool half brick DC/DC converters.
It uses a bolt-on attachment method with thermal material.
