| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
630 pcs
|
630 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

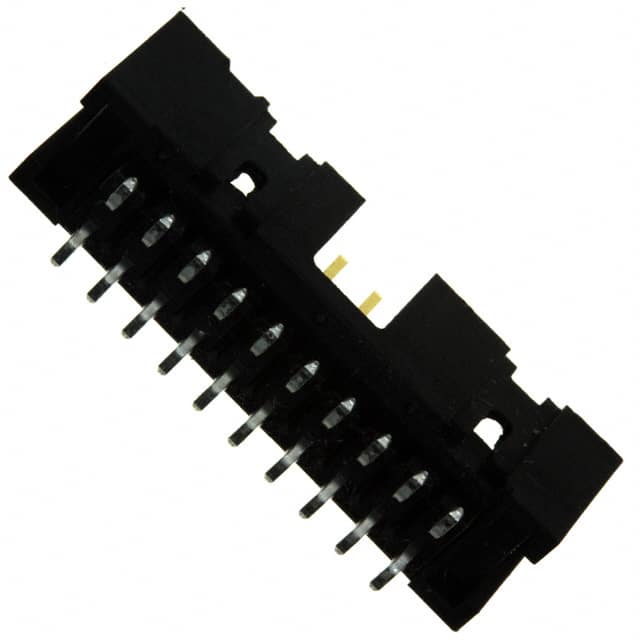

The 52601-S20-8LF is a shrouded header connector from Amphenol ICC featuring 20 male pin contacts arranged in 2 rows with a 2.54mm pitch and 0.100" (2.54mm) row spacing. The shroud is a 4-wall design providing protection and polarization. Contacts are made of phosphor bronze with a tin finish (15.0µin). The insulation is black thermoplastic rated UL94 V-0. Mounting is surface mount with solder termination. The operating temperature range is -65°C to 105°C. This connector is suitable for board-to-board or cable applications requiring a reliable, polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.50 | $3.50 |
| 10+ | $2.97 | $2.97 |
| 100+ | $2.53 | $2.53 |
| 630+ | $2.22 | $2.22 |
| 1,260+ | $2.11 | $2.11 |
| 5,040+ | $1.92 | $1.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
Surface mount.
Yes, it has a 4-wall shroud.
Tin (15.0µin / 0.38µm).
-65°C to 105°C.
UL94 V-0.
