| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
416 pcs
|
416 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

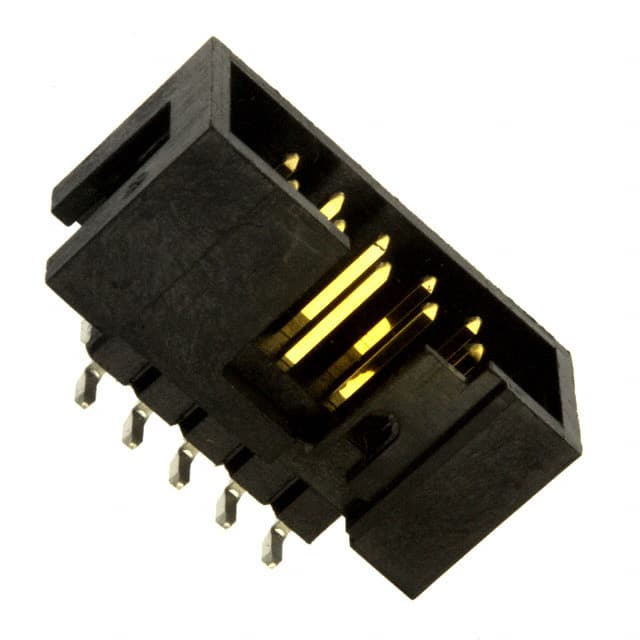

The 52601-S10-8LF is a 10-position rectangular connector header from Amphenol ICC. It features a 2.54mm pitch and a 2-row configuration with all positions loaded. The header is surface mount (SMD) with solder termination and a shrouded 4-wall design for secure mating and alignment. Contacts are made of phosphor bronze with a tin finish of 15.0µin (0.38µm). The insulation body is black plastic with a UL94 V-0 flammability rating, and the header operates over a temperature range of -65°C to 105°C. It is suitable for board-to-board or cable applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.94 | $2.94 |
| 10+ | $2.49 | $2.49 |
| 100+ | $2.12 | $2.12 |
| 500+ | $1.89 | $1.89 |
| 1,040+ | $1.80 | $1.80 |
| 5,200+ | $1.60 | $1.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54mm (0.100").
Surface Mount (SMD).
2 rows.
-65°C to 105°C.
UL94 V-0.
Phosphor bronze contacts with tin finish.
