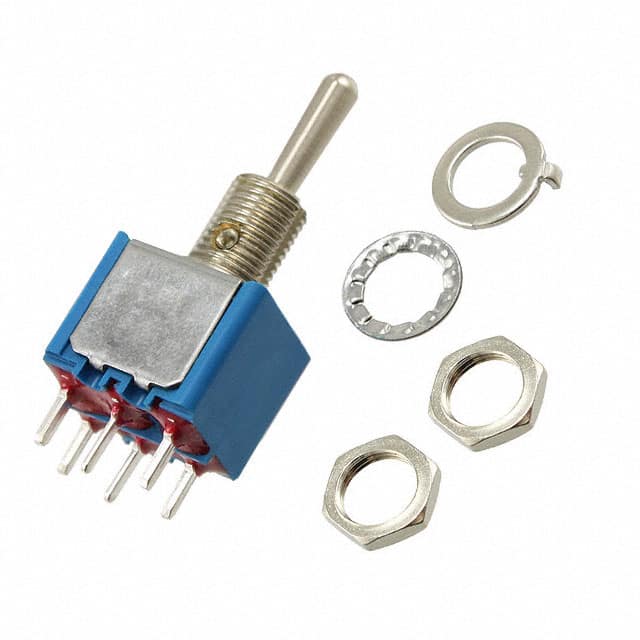

The APEM Inc. 5249AB is a double pole, double throw (DPDT) toggle switch from the 5000M series. It offers an On-Off-On switching function and is suitable for panel mounting with PC pin termination.
This switch is rated for 6A at 125VAC and 4A at 30VDC. It operates within a temperature range of -40°C to +85°C. Key electrical specifications include a contact resistance of 10 mΩ max and an insulation resistance of 1,000 MΩ min at 500 VDC. The mechanical life is rated for 100,000 cycles.
The bushing features a 1/4-40 thread and requires a panel cutout diameter of 6.50mm. The actuator is a standard round type with a length of 10.50mm. The switch includes epoxy sealed terminals for enhanced durability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +85°C.
The current rating is 6A for AC and 4A for DC.
The RoHS status is RoHS3 Compliant.
The MSL rating is 1 Unlimited.
The electrical life at full load is 50,000 cycles for single and double pole configurations.
The mechanical life is 100,000 cycles.
The panel cutout size is circular with a 6.50mm diameter.
