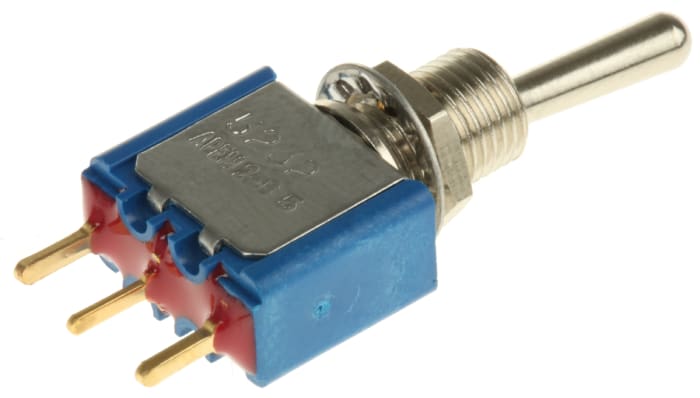

5232CDB The APEM Inc. 5232CDB is a toggle switch with a Single Pole Double Throw (SPDT) circuit and an On-Mom function. It is designed for panel mounting with PC terminals.
Mfr Part #:

5232CDB

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. 5232CDB is a toggle switch with a Single Pole Double Throw (SPDT) circuit and an On-Mom function. It is designed for panel mounting with PC terminals.
✓ Total Stock: 54 pcs
$ Price Range: $0.75

5232CDB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
54 pcs
On Request
54 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5232CDB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Material
Actuator Type
Bushing Thread
Circuit
Contact Material
Contact Resistance
Current Rating
Current Rating (Amps)
Failure Rate
Features
Housing Material
Illumination
Insulation Resistance
Lead Style
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Panel Thickness
Switch Function
Terminal Type
Termination Style
Torque
Voltage Rating
View Similar Products (0)

5232CDB Description

Short technical summary and product information.

The APEM Inc. 5232CDB is a miniature toggle switch from the 5000M series, featuring a threaded bushing and PC terminal style. It offers a Single Pole Double Throw (SPDT) circuit configuration with an On-Mom switch function, suitable for applications requiring momentary contact.



This switch operates within a temperature range of -40°C to +85°C and has a panel cutout diameter of 6.50mm. The actuator length is 10.50mm, and it is designed for panel mounting. The termination style is PC Pin, and it features epoxy sealed terminals for enhanced durability.



Electrical specifications include a contact rating of 0.4VA (AC/DC) at 20V and a maximum contact current of 400mA. The datasheet indicates a contact resistance of 10 mΩ max. and an insulation resistance of 1,000 MΩ min. at 500 VDC. It also boasts agency approvals including UL and CSA.



Key materials include a brass, nickel-plated actuator and bushing, with a diallylphthalate or high-temperature plastic case. The switch is non-illuminated and has a mechanical life of 100,000 cycles.

5232CDB Quick Information

Product Type: Toggle Switch
Series: 5000
Canonical Name: APEM Inc. 5232CDB Toggle Switch, SPDT, On-Mom, Panel Mount, PC Terminal
Subcategory: Toggle Switches

5232CDB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5232CDB Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

5232CDB Features

  • SPDT circuit configuration for versatile switching.
  • On-Mom function for momentary contact.
  • Panel mount design with PC terminals.
  • Wide operating temperature range of -40°C to 85°C.
  • Epoxy sealed terminals for durability.

5232CDB Applications

  • Suitable for momentary control circuits.
  • Ideal for panel-mounted applications.
  • Used in electronic equipment designs.
  • General purpose switching applications.

5232CDB FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the 5232CDB toggle switch?

The voltage rating is 20V.

What is the contact configuration of the 5232CDB?

It has an SPDT contact configuration.

What is the current rating of the 5232CDB toggle switch?

The current rating is 0.4VA.

What are the mounting and termination styles for this switch?

It features panel mount type with PC pin termination.

What is the operating temperature range of the 5232CDB?

-40°C to 85°C.

What standards does the 5232CDB comply with?

It is compliant with UL, CSA, NFVDE, RoHS, and UL standards.
