| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| EU ELV | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Halogen Content | |
| Halogen Free | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Solder Process | |
| Termination |

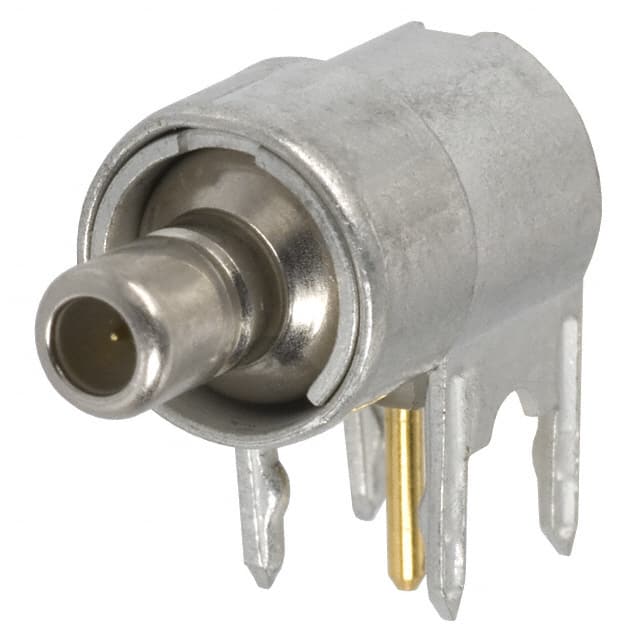

The 5228435-1 is an SMB (SubMiniature B) connector from TE Connectivity, configured as a jack with a male pin center contact. It features a right angle orientation for space-constrained PCB layouts.
Impedance is 50 Ohms, with a maximum frequency of 4 GHz. The snap-on fastening type ensures quick and secure mating.
Mounting is through hole with a right angle lead style. Both contact and shield terminations are solder. Center contact material is brass, housing color is silver. The connector supports wave solder up to 265°C.
RoHS compliant with exemptions, REACH contains SVHC (Lead 3.7%), low halogen content. MSL 1 (unlimited floor life). Note: Part status is Obsolete.
| Qty | Low | High |
|---|---|---|
| 5+ | $16.60 | $16.60 |
| 25+ | $16.29 | $16.29 |
| 45+ | $16.00 | $16.00 |
| 90+ | $15.68 | $15.68 |
| 200+ | $13.08 | $13.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm
4 GHz
Through hole, right angle
Snap-On
Yes, with exemptions (6(c) for lead in copper alloy)
Yes, it contains lead (3.7% in component part) as per REACH SVHC.
Wave solder capable to 265°C
