| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| China RoHS | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| ELV | |
| Fastening Type | |
| Frequency | |
| Halogen Content | |
| Halogen Free | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Solder Process Capability |

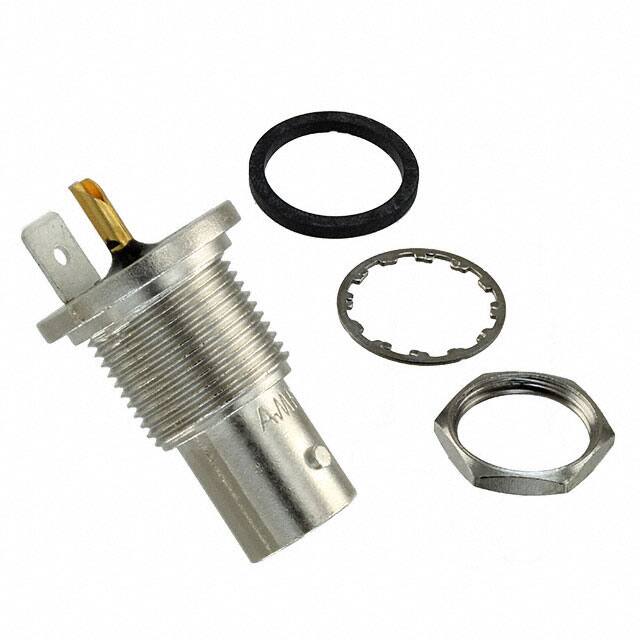

The TE Connectivity 5227426-1 is a BNC bulkhead receptacle designed for reliable RF connections. It is a 50 Ohm jack with a female socket, rated for operation up to 4 GHz. The connector uses a bayonet lock fastening type for secure mating.
This connector is panel mounted with a bulkhead front side nut mounting feature. The center contact is made of phosphor bronze, and the housing is silver. Contact termination is via a solder cup, and the shield is terminated by soldering. The part is hand solderable with lead free solder.
The 5227426-1 is RoHS compliant with exemptions, REACH compliant with SVHC declarations, and has low halogen content (Br, Cl, F, I < 900 ppm). It is also BFR/CFR/PVC free.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.19 | $15.19 |
| 20+ | $12.29 | $12.29 |
| 40+ | $11.71 | $11.71 |
| 60+ | $11.38 | $11.38 |
| 100+ | $10.97 | $10.97 |
| 260+ | $10.26 | $10.26 |
| 500+ | $9.80 | $9.80 |
| 1,000+ | $9.33 | $9.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohm.
The maximum frequency is 4 GHz.
It uses panel mount with a bulkhead front side nut.
The contact termination is solder cup.
Yes, it is RoHS compliant with exemptions (Exemption 6(c) - Pb-Alloy in Copper).
The fastening type is bayonet lock.
