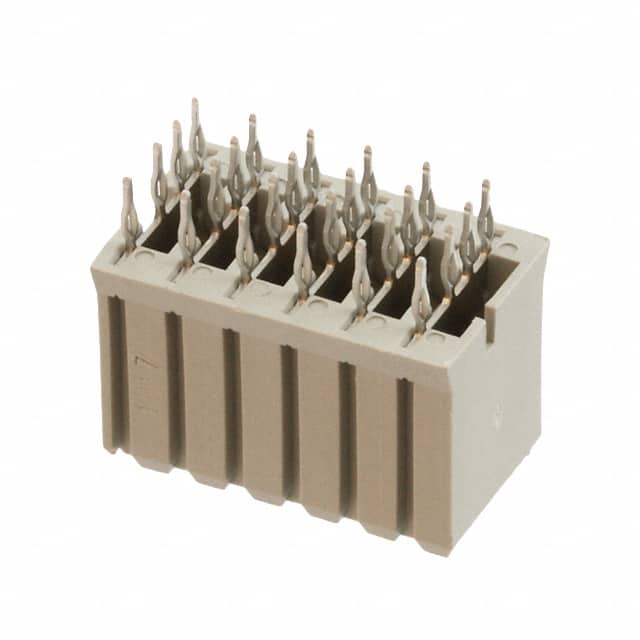

5223995-3 Receptacle, female blade sockets, 6 positions, blade power, backplane connector. Through hole press-fit mounting, gray color.
Mfr Part #:

5223995-3

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
Receptacle, female blade sockets, 6 positions, blade power, backplane connector. Through hole press-fit mounting, gray color.
✓ Total Stock: 4,081 pcs
$ Price Range: $9.86

5223995-3 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
2,059 pcs
On Request
2059 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,022 pcs
On Request
2022 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5223995-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Style
Connector Type
Connector Usage
Contact Finish
Contact Layout, Typical
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
SVHC Present
Tape & Reel
Termination
Termination Style
View Similar Products (0)

5223995-3 Description

Short technical summary and product information.

This is a 6-position blade power receptacle from TE Connectivity designed for backplane power applications. The connector features a single row of 6 power contacts with female blade sockets, providing a reliable power interconnect. The contact finish is gold or gold-palladium for enhanced conductivity and durability. Mounting is through hole with press-fit termination, ensuring secure PCB attachment. The housing is gray. This connector is compliant with RoHS3, REACH unaffected, and has an MSL of 1 (unverified). It is suitable for use in backplane power distribution systems in servers, telecom equipment, and industrial electronics.

5223995-3 Quick Information

Product Type: Blade Power Receptacle
Series: UPM
Canonical Name: Receptacle, Female Blade Sockets, 6 Positions, Blade Power, Backplane, Through Hole, Press-Fit
Subcategory: Blade Power

5223995-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5223995-3 Estimated Pricing

Qty Low High
1,085+ $9.86 $9.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

5223995-3 Features

  • 6 power contacts in single row design.
  • Through hole press-fit termination.
  • Gold or gold-palladium contact finish.
  • Gray colored housing.
  • Backplane blade power connector style.

5223995-3 Applications

  • Used in backplane power distribution systems.
  • Suitable for high-current blade power connections.
  • Ideal for server and telecom equipment.
  • Designed for through hole PCB mounting.

5223995-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 5223995-3 have?

6 positions.

What is the mounting type for this connector?

Through hole.

What termination style is used?

Press-fit.

What is the contact finish?

Gold or gold-palladium.

How many rows of contacts?

1 row.

What is the connector style?

Blade Power.

What is the connector usage?

Backplane.
