Mfr Part #:

5223968-1

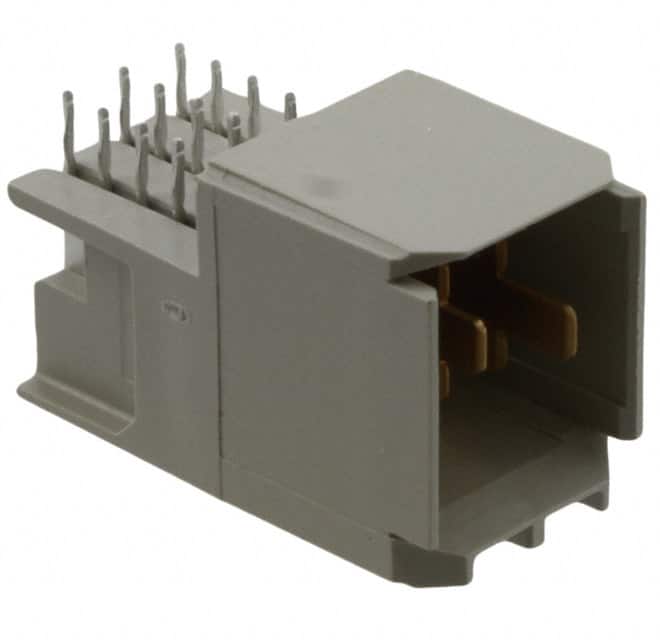

The 5223968-1 is a 3 position blade power header from TE Connectivity featuring right angle, press-fit termination for board edge mounting.

✓ Total Stock: 80 pcs

$ Price Range: $5.35 - $8.73

5223968-1 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	40 pcs On Request	40 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
RAD ✓ Non-Authorised Inventory information	40 pcs On Request	40 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

5223968-1 Description

Short technical summary and product information.

The TE Connectivity 5223968-1 is a backplane connector in the Universal Power Module series. It is a header with male blades, featuring 3 positions in a single row. The connector supports board edge mounting with right angle orientation and uses press-fit termination for reliable solderless connections. Contact finish is gold or gold-palladium, ensuring good conductivity and corrosion resistance. A board guide feature assists alignment during mating. Designed for backplane power distribution, this connector is suitable for high-current applications in networking, telecom, and industrial equipment.

5223968-1 Quick Information

Product Type: Backplane Connector

Canonical Name: TE Connectivity 5223968-1 Blade Power Header, 3 Position, 1 Row, Right Angle, Press-Fit, Board Edge Mount

Subcategory: Blade Power Backplane Connector

5223968-1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5223968-1 Estimated Pricing

Qty	Low	High
1+	$8.73	$8.73
10+	$7.42	$7.42
48+	$6.64	$6.64
96+	$6.32	$6.32
144+	$6.14	$6.14
288+	$5.85	$5.85
528+	$5.60	$5.60
1,008+	$5.35	$5.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

5223968-1 Features

3 positions with blade power contacts.
Right angle through hole press-fit termination.
Board edge mount with board guide feature.
Gold or gold-palladium contact finish.
Single row design for compact layouts.

5223968-1 Applications

Designed for backplane power distribution.
Suitable for high current blade power connections.
Common in networking and telecom equipment.
Used in industrial control systems.

5223968-1 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TE 5223968-1 connector have?

3 positions.

What is the mounting type for this connector?

Board edge, through hole, right angle.

What termination does the 5223968-1 use?

Press-fit.

What contact finish is available?

Gold or gold-palladium.

What is the connector usage?

Backplane applications.

How many rows does it have?

1 row.

What features does the connector include?

Board guide.

5223968-1 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

223961-1

TE Connectivity

TE Connectivity 223961-1 is a 3-position blade power header from the Universal Power Module series. It features a right-angle, board-edge through-hole mounting with press-fit compliant posts and gold-plated mating contacts.

View Part

223965-1
